ASTM A366 Standard Specification for Commercial Steel Sheet
ASTM A366 covers cold-rolled carbon commercial steel (CS) sheets, either in coils or cut lengths. This material is meant for exposed or unexposed sections that may require welding, mild drawing, bending, and forming. Multiple narrow-width slits from a wide sheet are not considered strips unless they meet specific criteria, such as thickness, unique finish, unique edge, or unique temper. The values expressed in SI units or inch-pound units are to be treated as standards independently. The material finds application in automotive bodies, households, furniture, and general metal fabrication.
Read More
GET STARTED
Introduction to ASTM A366
Cold-rolled carbon commercial steel (CS) sheet, either in coils or cut lengths, is covered by ASTM A366. This material is meant for exposed or unexposed sections that may require welding, mild drawing, bending, and forming. The heat analysis report must contain each of the items on the list. The analysis may be reported as <0.02% if the concentration of copper, nickel, chromium, or molybdenum is less than 0.02%. Should vanadium or columbium levels be below 0.008%, the analysis may be presented as <0.008%.
Products conforming to ASTM A366 are widely used in the manufacturing sector for items like automotive panels, household appliances, and furniture, due to their desirable combination of formability, ductility, and superior surface finish provided by the cold-rolling process. ASTM A366 is a standard specification for cold-rolled carbon steel sheets used in various forming applications. Known for its excellent ductility and smooth surface finish, it’s commonly used in automotive parts, appliances, and furniture. This grade offers good strength and is easy to weld or bend, making it a practical choice for manufacturing and fabrication work.
Service Name
Remarks
ASTM A366 Testing
Expert Consultation
Get Certified ASTM A366 for Uncompromising Quality and Project Success
ASTM A366 certification is compliance with a standard of world-renowned quality of commercial-grade steel sheets. It confirms that the material is of the required chemical composition, mechanical strength, and surface finish. Firms that utilize materials that are certified by ASTM A366 have a competitive advantage in that they are consistent in the forming operations, weldability, and appearance of their finished products. The certification improves the efficiency of production, reduces the rate of rejection, and aids in adhering to the international standards of manufacturing and safety during production.

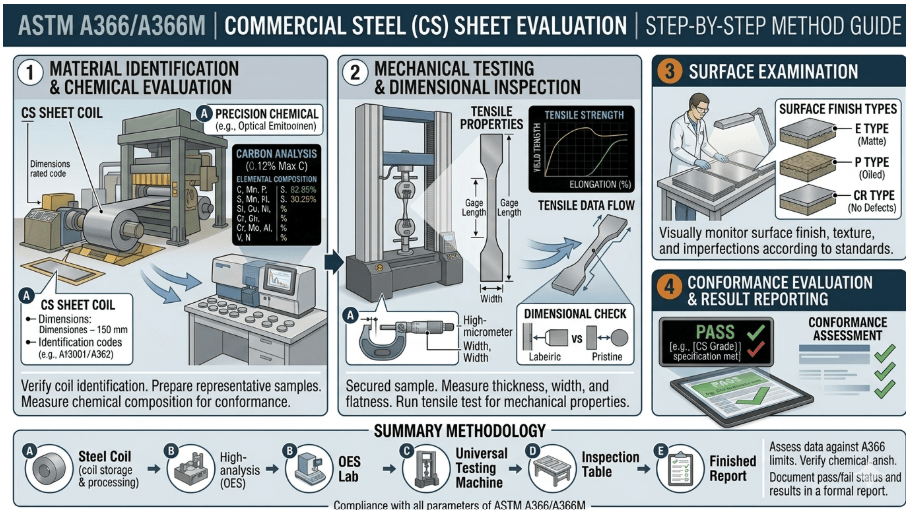

ASTM A366 Testing Procedure and Requirements
Sampling
Samples of steel sheets used in the sample are taken per lot or coil to check equal conformity to the specification.
Chemical Composition
The material should meet the limits of carbon, manganese, phosphorus, and sulfur established by the standard, which is the guarantee of adequate ductility and welding capacity.
Bend Test
The material must be able to be bent 180 degrees flat on itself in any direction at room temperature without the bent section breaking.
Hardness Test
It is anticipated that a sheet of this quality will not have a hardness of more than Rockwell B60 at the time of shipment if no extra flattening is needed. The scribbled square test is used to evaluate moderate deformations on items that have been recognised. Based on past experiences, commercial steel should function satisfactorily if the percentage increase around any drawn component of a suitable untrimmed part is 25% or less.
Scope of ASTM A366
Coverage: Commercial-quality cold-rolled carbon steel sheets, which are used in the bending, forming, or drawing of metals.
Stipulates the mechanical property, chemical composition, and surface finish that manufacturers of the same product will have similar production quality.
Independent of the sheet that is applied to the car panel, domestic appliances, furniture, and the light fabrication sectors.
ASTM A366 Equipment and Sample Preparation
Specimen detail
Cold-rolled carbon commercial steel (CS) sheet, either in coils or cut lengths, is the specimen for ASTM A366
Specimen Size
Commercial steel will give satisfactory results provided that the size of the area of a drawn component is enlarged at least 25 percent. The analysis can be noted as <0.02% or less than 0.008% in case the material is lower than 0.02% in copper, nickel, chromium, or molybdenum.
Specimen Dimensions
Typically, 25 mm wide and 200 mm long tensile specimens (as per ASTM A370)
Use of ASTM A366
Used in the production of appliances, such as fridges, washers, and cases.
It is preferred in furniture fabrication and shelving, as well as office equipment, since it has a high level of form.
Applications include use in the construction of panels, ducts, and HVAC equipment to achieve uniform thickness and strength.
Common Challenges and Troubleshooting in ASTM A366
One of the most encountered problems is variation in mechanical properties due to variation in cold-reduction practice or annealing cycles, or regulation of surface finish. The gouges, pits, rust spots, or disuniformity of the coating may be manifested during handling and storage and affect the visual and corrosive properties. To minimize such concerns, it is necessary to make sure that storage facilities are clean and that they are lined with the necessary protective layers. The alternative issue is dimensional tolerances, e.g., variation of thickness, flatness, or width.
ASTM A366 Testing Technique, Process, and Data Collection
The tests include tensile testing and thickness, and surface finish testing parameters. The tensile testing machines, micrometres, and visual inspection tools are used to collect data. Such results as yield strength, elongation, and variation in thickness are statistically analyzed to verify conformity. Surface profiles can be recorded either with imaging or profilometry systems to ensure that the traceability and accuracy of the profiles are maintained throughout the production lots.
Analysis Results and Interpretation for ASTM A366
Tests that are conducted and based on ASTM A366 show whether the steel sheet is of commercial quality. Good formability is achieved by high values of elongation, and constant tensile strength is added to reliability during fabrication. Surface finish analysis defines the appropriateness of the finish or decorations. The statistics allow manufacturers to work on process parameters, as well as ensure that there is consistency in the performance of a product in batches of production.
Problem & The Solution for ASTM A366
Another issue that is likely to be faced is the irregular rolling or coiling that results in uneven thickness or poor flatness. The remedy is to adopt a cutting-edge rolling control system and frequent maintenance of mills and thickness checking devices. Scheduling in-process checks and compliance with ASTM A366 would guarantee accuracy in dimensions, better surface quality, and increased reliability in production.
Factors to Consider for ASTM A366
Speed: Automated inspection and rolling systems make production take a shorter time, and at the same time, they do not compromise on quality.
Expert: Skilled metallurgical engineers and quality engineers guarantee compliance with ASTM A366 mechanical and surface finish specifications.
Cost: ASTM A366-certified steel reduces wastage of materials, enhances formability, and lowers costs-effective manufacturing in the long run.
