ASTM D698 Laboratory Compaction Characteristics of Soil

    ASTM D698 Introduction

    ASTM D698 establishes the relationship between content and the dry unit weight of soil in molding under controlled compaction effort. This association develops a compaction curve that helps engineers determine the optimum water content and maximum dry density. Such values are used to construct embankments, road bases, and foundation pads. Consequently, ASTM D698 provides a standard to make sure that soil meets the desired shear strength, compressibility, and permeability. These findings assist engineers in managing field compaction and ensuring uniform soil performance under actual conditions. Soil gradation defines three methods. Method A involves a 4-in. mold and a material that passes a No. 4 sieve. Method B similarly applies a 4-in. mold but does not filter material over 3/8-in. sieve. Method C involves a 6-in. mold through which the material flows 3/4-in. sieve. Both techniques use certain layers and blows to meet the standard compaction effort.

    Read more

    Get Certified ASTM D698 Testing for Reliable Soil Compaction Control

    Why is ASTM D698 testing important to engineers? Correct compaction data provides stable foundations and the structural performance over time. In addition, effective testing contributes to achieving the desired field density and moisture content. Consequently, construction projects are of high quality and minimize the risks of failures.

    Scope of ASTM D698 Test Standard

    • Establishes the relationship between water content and dry unit weight.
    • Adopts standard compaction effort conditions.
    • Covers Methods A, B, and C on the gradation of soil.
    • Assists in the laboratory and field compaction.

    ASTM D698 Equipment and Sample Preparation

    Compaction MoldCylindrical mold of 4 in. or 6 in. diameter for soil placement
    Rammer5.50-lbf (24.5 N) rammer dropped from 12 in. height
    BalanceMeasures soil mass for density calculations

    Use of ASTM D698

    • Establishes the ideal water percentage in compaction.
    • Determines the dry unit weight of soil (maximum).
    • Assists in foundation and embankment design.
    • Checks the quality of compaction in the field.
    • Helps in evaluating the performance of the soil.

    Why Is Optimum Water Content Important in ASTM D698?

    The ideal water content enables soil particles to rearrange effectively during compaction. Thus, it yields optimum dry density and strength. The surplus water decreases density, whereas the lack of moisture decreases the efficiency of compaction.

    Testing Procedure and Requirements

    ASTM D698 is a test that determines the compaction of soil through the use of a standard rammer to apply a controlled amount of mechanical energy to soil. Technicians fill in soil layers in a mold with varying water contents. Then, they compute the dry unit weight for each condition to construct a compaction curve. ASTM D698 test method information is essential for designing and constructing foundations, earthworks, and other geotechnical engineering applications.

    Read more

    Mold SizeA 4-inch (101.6 mm) or 6-inch (152.4 mm) diameter mold is used
    Compaction Effort12,400 ft-lbf/ft³ (600 kN-m/m³) applied using 5.50-lbf rammer dropped from 12 in.
    LayeringSoil is compacted in three layers with a specified number of blows per layer

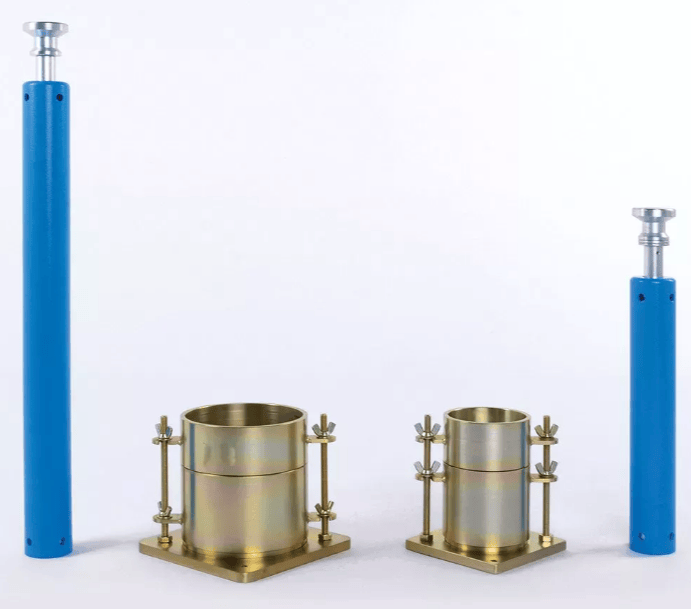

    The image shows the standard proctor compaction test apparatus used to determine the relationship between soil moisture content and dry unit weight as described in ASTM D698 standard.
    Standard Proctor Compaction Test Apparatus

    How Do Different Methods (A, B, C) Affect ASTM D698 Results?

    Methods A, B, and C, according to soil gradation and particle size, are offered in ASTM D698. Method A uses soil that has passed through a No. 4 sieve, and Method C can handle larger particles up to 3/4 in. Thus, a correct choice of method will ensure accurate density results and a correct compaction evaluation.

    Read more

    Common Challenges and Troubleshooting

    Testing can give errors with soils that have too many oversize particles (over 30 percent). These soils need other methods, such as test fills or correction factors. Also, the loss of particles during compaction enhances the measured density, which is not a field condition. Gap-graded soils also induce larger voids, which affect the outcomes. Engineers solve these problems by specifying methods and controlling the range of moisture, as well as applying correction methods. Proper equipment and skilled personnel also enhance accuracy.

    ASTM D698 Testing Technique Process, and Data Collection

    The testing process starts with selecting the soil and moistening it. Technicians mould soil in a mould with a standard rammer and a certain number of blows. They do this at varying water contents to generate several data points. They then obtain the dry unit weight of each condition and plot the compaction curve. This curve determines the optimal water content and the maximum dry unit weight.

    Analysis Results and Interpretation

    ASTM D698 records and reports dry unit weight in lb/ft3 and water content in percentage (%). The compaction curve indicates that the highest value corresponds to the maximum dry unit weight. Corresponding water content is the optimum moisture content. Dense soil implies superior compaction and enhanced soil strength. Engineers use these values to define field compaction targets.

    Link to ASTM D698 Standard
