ASTM A578 Standard Specification for Straight-Beam Ultrasonic Examination of Rolled Steel Plates for Special Applications

Get Certified ASTM A578 Ultrasonic Examination

ASTM A578 testing allows for the evaluation of internal discontinuities & specified ultrasonic acceptance requirements in rolled steel plates. The technicians prepare the examination surface, check the ultrasonic equipment, set up the appropriate coupling, and scan the necessary areas of the plate. Analysts evaluate detected indications and compare them with the applicable acceptance level. The outcomes can be used to help with material acceptance, material quality control, material fabrication planning, and evaluation of steel plates that are to be used in special applications.

• Material Type: Rolled carbon and alloy steel plates.
• Plate Thickness: Plates 3/8 in. [10 mm] and over in thickness.
• Purpose: Detection and evaluation of internal discontinuities.
• Method: Straight-beam, pulse-echo ultrasonic examination.
• Property Evaluated: Internal ultrasonic response and discontinuity indications.
• Acceptance: Three levels of acceptance standards.
• Personnel Qualification: Examination personnel must meet the specified qualification and certification requirements.
• Applications: Steel plates intended for special applications requiring controlled internal quality.

What are the uses of ASTM A578 testing?

ASTM A578 testing can be used to assess the internal quality of rolled carbon and alloy steel plates. The ultrasonic examination can detect internal discontinuities that are not observable on the surface. This offers information to assist engineers, inspectors, and qualified technicians in determining the quality of the internal condition of steel plates before fabrication or service. The test helps to:

• Internal Discontinuity Detection: Identifies internal discontinuities within rolled steel plates.
• Material Quality Evaluation: Assesses the internal soundness of the plate.
• Material Comparison: Compares examination results against specified acceptance requirements.
• Quality Control: Supports inspection of manufactured steel plates.
• Material Acceptance: Provides information for acceptance of plates according to the applicable requirements.
• Fabrication Planning: Helps identify internal conditions before further processing.
• Special-Application Evaluation: Supports steel plate inspection where internal quality is important.

Which Materials Can Be Tested According to ASTM A578?

ASTM A578 applies to rolled carbon and alloy steel plates intended for special applications. The specification covers plates with a thickness of 3/8 in. [10 mm] and over. Technicians examine accessible plate surfaces using straight-beam ultrasonic techniques and evaluate internal discontinuities parallel to the rolled surfaces. The method applies to:

• Carbon Steel Plates: Rolled carbon steel plates requiring ultrasonic examination.
• Alloy Steel Plates: Rolled alloy steel plates requiring internal quality evaluation.
• Special-Application Plates: Steel plates requiring specified ultrasonic acceptance standards.
• Production Plates: Representative manufactured plates selected for examination.
• Heavy Steel Plates: Plates meeting the minimum thickness requirement of the specification.

Why is ASTM A578 Testing Important?

The interior of rolled steel plates may also have internal discontinuities that cannot easily be identified by visual inspection. ASTM A578 offers a nondestructive ultrasonic method to detect these internal conditions and to assess against set criteria. The results enable engineers and inspectors to verify the internal quality level of the plate against the required level for a specific application. The examination can also be used to aid in quality control and acceptance of materials before fabrication.

ASTM A578 Testing Process and Data Collection

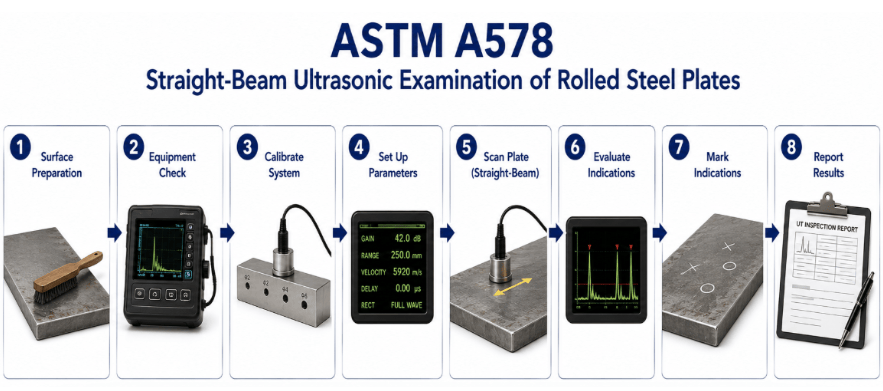

Technicians prepare the rolled steel plate, examination surface, ultrasonic equipment, reference block, and coupling system. They verify the apparatus and establish the required examination conditions before scanning the plate. During examination, technicians move the straight-beam transducer across the specified areas and monitor reflected ultrasonic signals. Analysts record relevant indications, evaluate their characteristics, and compare the findings with the applicable acceptance standards. The resulting examination data provides information about the internal condition of the steel plate and whether detected discontinuities satisfy the specified acceptance requirements.

Common Challenges and Troubleshooting

ASTM A578 examination results may be affected by variations in surface condition, coupling, equipment performance, scanning technique, plate geometry, and examiner qualification. The technician should maintain an appropriate examination surface, check the ultrasonic equipment, set up the appropriate coupling, and systematically scan the necessary area. If equipment response/references block checks are not as expected, plate thickness, scanning coverage, and indication records should be reviewed by the analyst.

• ASTM A578 produces ultrasonic-examination-specific results rather than a single general material-property value.
• Technicians commonly report detected ultrasonic indications, relevant indication locations or measurements, plate thickness, examination conditions, and the applicable acceptance evaluation. Plate and indication dimensions may be reported in mm or other applicable SI units.
• The report contains the following information: identification of the steel plate, specimen or plate data, plate dimensions and thickness, examination surface and area, ultrasonic equipment information, coupling method, scanning conditions, detected indications, applicable measurements, and acceptance evaluation.
• By documenting surface preparation, equipment verification, coupling, ultrasonic scanning, indication recording, and equipment calibration, technicians and analysts can achieve reliable, comparable results.
