ASTM D1894 Static and Kinetic Coefficients of Friction of Plastic Film and Sheeting
ASTM D1894 measures the static and kinetic friction of plastic films. Manufacturers use the test to determine material slip-on, slip-over, or other material properties. A universal testing machine and sled are used with a special friction fixture to perform tests. The final report provides the calculated friction numbers and surface changes. Static and kinetic frictions are expressed in numbers without units in this test. The information is therefore essential to packaging companies for optimizing their high-speed machines.
Read More
GET STARTED
Introduction to ASTM D1894
ASTM D1894 (Static and Kinetic Coefficients of Friction of Plastic Film and Sheeting) is a standard test method for determining the friction coefficient of plastic films. Packaging manufacturers rely on this standard to keep materials from jamming during production. In addition, this method determines the starting and sliding friction of plastic sheeting. To streamline automated packaging processes, manufacturers consider surface properties. Ultimately, packaging testing through our reliable lab helps companies maintain consistent quality and handling characteristics.
Get Certified ASTM D1894 Testing for Seamless Packaging Operations
Certification ensures that plastic films have the right slip for high-speed machinery. This, in turn, helps prevent production line downtime and resource wastage. But accurate data is essential for a quality-control team to greenlight new film formulations. Hence, friction analysis ensures product reliability and peak manufacturing performance.
Service Name
Remarks
ASTM D1894 Testing
Contact US
Testing Procedures and Requirements
Technicians adjust the test environment to a certain humidity and temperature. They then secure the film firmly against a horizontal test base. Then they tightly attach the film to a horizontal test base. The operator then places a heavy wooden sled on the apparatus. The sled is dragged by the machine at a constant speed. Finally, the particular software records the effort required to get up and maintain movement.
Specimen Selection
The technicians decide what samples to take from the plastic film batch. They carefully check for any folds or other surface defects. Besides, the test surfaces are not touched by laboratory personnel, ensuring no contamination from skin oils. Accurate friction measurements during final evaluation are ensured by proper handling.
Test Setup and Execution
The operator attaches a plastic sheet firmly to the experiment stand. Next, they wrap another strip of the sample around a 200-gram sled. The universal testing machine is operated through a low-friction pulley system in conjunction with a sled. Therefore, the system pulls the sled to continuously measure the resistance force. The software then logs both the peak force at the start and the average sliding force.

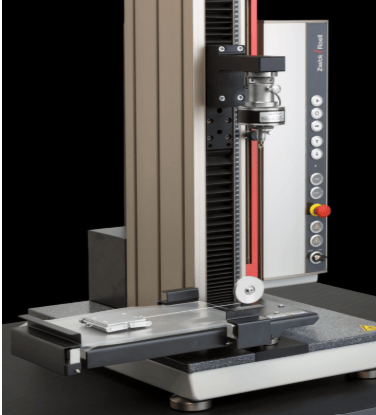

ASTM D1894 Universal Testing Machine (UTM)
Scope of ASTM D1894 Test Standard
Determines static and kinetic friction coefficients of plastic films
It is used in films and sheeting plastics.
Measures properties of plastic film sliding against itself or other surfaces.
Particularly reliable in high-velocity packaging for quality control.
Needs special standardized environmental conditions.
Equipment and Sample Preparation
Specimen Details
The ASTM D1894 test is performed on plastic films, plastic sheeting, and packaging materials. Specimens are prepared with great care to ensure good surface conditions. In addition, samples are conditioned in a lab at 23 °C and at 50% RH for a minimum of 40 hours. This is a crucial stage to ensure material stability prior to evaluations.
Specimen Dimensions
Technicians cut a 250 mm x 130 mm sheet of material for the horizontal testing plane. Then, technicians take out a square piece of 120 mm to wrap around the moving sled. The same contact area ratio is used throughout the test.
Use of ASTM D1894
Calculates film properties of materials for flexible packaging.
Avoids jamming of machines during automatic wrapping.
Evaluates the performance of the added slip agents.
Supports engineers by recommending the best packaging materials that are available.
Conducts production on a day-to-day basis that meets uniform surface characteristics.
Why is the coefficient of friction important for plastic films?
Friction directly relates to the motion of plastic films in processing machines. If there is high friction, material can stretch, tear, or jam in production. On the other hand, very low friction causes packages to slip and fall during transport. So, by balancing and optimizing these forces, it is possible to improve manufacturing efficiency and final product safety.
How do slip additives affect the test results?
Slip agents are often used by manufacturers to reduce plastics’ resistance to sliding. The additives in these compounds, such as phosphorus compounds, gradually migrate to the surface of the film, resulting in a change in friction. Testing is conducted at various times to observe the long-term effects of these chemicals. The changes during the tests are detected in labs, which are used to draw accurate conclusions about the test’s performance.
Common Challenges and Troubleshooting
During operation, operators may experience problems such as charge buildup or surface contamination. These variables can easily skew accurate force data. The following are common errors that can be avoided through proper grounding and sample handling. This calibration is performed regularly to ensure the load cell continues to provide accurate and reliable data.
Testing Technique, Process, and Data Collection
The automated pulling process starts on the testing machine for the technician. The software automatically displays a time history graph of force vs. displacement. The first peak force is then translated into static friction within the system. Lastly, it takes the force data, calculates averages, and uses these values to determine the kinetic friction.
Analysis Results and Interpretation
The static coefficient of friction (µs) is the ability of two surfaces to resist motion when the motion is just starting. It is determined by the ratio of the initial force needed to initiate movement to the sled’s weight. It’s defined as the ratio of the initial force needed to get the sled moving to the sled’s weight. The µs value indicates the amount of surface resistance present between two surfaces. The results are significant for assessing the handling and packaging qualities of plastic films and sheets.
Factors to Consider for ASTM D1894 Testing
Speed: Quick production turnaround times enable manufacturers to adjust production lines without incurring costly delays.
Expertise: Microtechnical processing of the samples is carried out carefully by the technician to prevent contamination of the specimen surface.
Cost: Partnering with a reliable ab facility provides accurate testing data while optimizing operational budgets.
You can share your astm d1894 testing requirements with MaTestLab. MaTestLab has a vast network of material testing laboratories, spread across the USA and Canada. We support your all material testing needs ranging from specific astm d1894 test to various testing techniques.
How much do I need to pay for the astm d1894 test?
Please contact us for a detailed quote for your astm d1894 testing needs. Cost incurred to carry out different astm d1894 testing methodology depends on the type of raw material; number of samples, coupons, or specimens; test conditions, turn around time etc. Costs of some ASTM testing methods start from $100 and the final value depends upon the factors listed above. Please contact us for the best and latest prices.
How many samples are required for astm d1894?
The required number of samples or specimens should comply with the procedure given in the astm d1894 standard. However, the MaTestLab operations team can assist you for your special requirements once you share your testing details with us.
How much discount can I get on the astm d1894 test?
MaTestLab has a vast testing laboratory network, hence we bring you the best testing facilities in a cost-effective way. We offer considerable discounts (15-20%) to our returning customers based on test volume and frequency.
How many days will it take to complete the astm d1894 test?
The turnaround time for astm d1894 test methodology depends upon the test procedure mentioned in the standard test document. However, we at MaTestLab understand your research requirements and hence try to get your test completed within the least possible time.
Where can I get the astm d1894 tested?
You can share your astm d1894 testing requirements with MaTestLab. MaTestLab has a vast network of material testing laboratories, spread across the USA and Canada. We support your all material testing needs ranging from specific astm d1894 test to various testing techniques.
