ASTM D792 Density and Specific Gravity (Relative Density) of Plastics by Displacement

    What is ASTM D792?

    ASTM D792 is a standard set of test methods for determining the density and specific gravity (relative density) of solid plastics by displacement. Technicians weigh a specimen in air, then reweigh it while immersed in a liquid. Method A uses water, and Method B uses non-water liquids. The methods cover solid plastics in forms such as sheets, rods, tubes, or molded items, and SI units are the standard. Specific gravity is a ratio with no unit, and density appears in kg/m³. The results help identify materials, follow physical changes in a sample, check uniformity between specimens, and calculate strength-to-weight and cost-to-weight ratios. Portions of one sample can differ in density because of crystallinity, thermal history, porosity, or composition, so the test also shows non-uniformity. ASTM D792 is not equivalent to ISO 1183-1 Method A.

    Read more

    Get Certified ASTM D792 Testing for Reliable Plastic Density Data

    Density is one of the quickest ways to confirm a plastic is what it is supposed to be. A report that follows ASTM D792, with a calibrated balance, recorded water temperature, and documented specimen conditioning, provides results buyers and producers can compare. The report also lists the method, immersion liquid, mass in air, apparent immersed mass, and sinker and wire mass, so buyers can review the calculation. Laboratories use the data for incoming material checks, production monitoring, and material comparison.

    What is the scope of the ASTM D792 Test Standard?

    ASTM D792 is a standard test method for determining the specific gravity (relative density) and density of solid plastics in forms such as sheets, rods, tubes, or molded items. The edition used for this summary is D792-20, developed by Subcommittee D20.70 under ASTM Committee D20 on Plastics.

    Read more

    The scope of ASTM D792 includes

    • Material type: Solid plastics in forms such as sheets, rods, tubes, or molded items
    • Property measured: Specific gravity (relative density) and density
    • Method A: Testing of solid plastics in water
    • Method B: Testing of solid plastics in liquids other than water
    • Principle: Mass in air compared with apparent mass when immersed
    • Units: SI units are the standard, and density is given in kg/m³
    • Relation to ISO: Not equivalent to ISO 1183-1 Method A, because D792 gives more guidance on sample weight and dimensions, and ISO allows an additional test temperature of 27 ± 2 °C

    What are the Uses of ASTM D792 Testing?

    ASTM D792 is mainly used to identify plastics and track differences between samples through a quick, simple density measurement. The uses include:

    • Checks the uniformity of different sampling units or specimens by comparing their density and specific gravity.
    • Helps identify a plastic material by comparing its measured density with the expected value.
    • Follows physical changes in a sample, because density changes when the material changes.
    • Supplies the density needed to calculate strength-to-weight and cost-to-weight ratios.
    • Gives an indication of the average density of a large item.
    • Detects density differences caused by crystallinity, thermal history, porosity, or composition, as well as plasticizer loss or solvent absorption.

    What materials can be tested under ASTM D792?

    ASTM D792 applies to solid plastics in forms such as sheets, rods, tubes, or molded items. Portions of one sample can differ in density because of differences in crystallinity, thermal history, porosity, and composition, such as the type or proportion of resin, plasticizer, pigment, or filler. Specimens that float in water need a sinker, and the standard lists a sinker for plastics with a specific gravity below 1.000.

    Why is ASTM D792 Important?

    Density links to composition and structure, so a change in density can signal a change in the material. Localized differences in crystallinity, loss of plasticizer, or solvent absorption can all change a single material’s density. A displacement method is simple to run, and it needs little more than a balance and a vessel of liquid. The standard also sets the water temperature, the way the specimen is held, and the formula, so different laboratories report comparable values.

    ASTM D792 Equipment and Sample Preparation Guide

    ASTM D792 needs a balance, an immersion vessel on a support, a wire to hold the specimen, and a sinker when the specimen floats. Method B also requires a way to determine the liquid’s specific gravity, and the standard specifies a pycnometer for that purpose.

    Read more

    Sample and Specimen DetailsThe specimen is a solid plastic in a form such as a sheet, rod, tube, or molded item. Method A uses water as the immersion liquid, and Method B uses another liquid.
    Specimen PreparationWhen conditioning is required, technicians condition the specimens at 23 ± 2 °C and 50 ± 5% relative humidity for at least 40 hours, as ASTM D618 describes.
    Specimen DimensionsThe specimen is a single piece of plastic weighing 1 to 50 g, and 1 to 5 g is usually convenient. Its volume is at least 1 cm³, its surface and edges are smooth, and its thickness is at least 1 mm per 1 g. Technicians suspend the specimen from a fine wire about 25 mm above the vessel support when they weigh it in air.
    InstrumentationThe system includes a balance, an immersion vessel on a support, a wire to suspend the specimen, a sinker for specimens with a specific gravity below 1.000, a thermometer for the water temperature, and, for Method B, a pycnometer for the liquid.

    Testing Procedures and Requirements for ASTM D792

    The laboratory weighs the specimen in air, immerses it in the liquid, weighs it again while immersed, and calculates the specific gravity and the density from the two masses. ASTM D792  testing procedure is as follows:

    Read more

    Specimen Preparation & ConditioningTechnicians select a solid plastic specimen at least 1 mm thick for each 1 g of weight. When conditioning is required, they condition it at 23 ± 2 °C and 50 ± 5% relative humidity for at least 40 hours, as described in ASTM D618.
    Apparatus SetupThe operator mounts the immersion vessel on its support and fills it with water for Method A, or with another liquid for Method B. Keep the water at 23 ± 2 °C. The operator attaches a wire to hold the specimen and adds a sinker if the specific gravity of the specimen is below 1.000.
    Weighing & MeasurementThe operator weighs the specimen in air and records the mass as a. If a wire is used, the operator subtracts the mass of the wire. The operator then immerses the specimen completely, removes any air bubbles from the specimen, wire, and sinker, and records the apparent immersed mass as b.
    Result CalculationAnalysts calculate specific gravity as a / (a + w − b), where w is the apparent mass of the sinker and the partly immersed wire. It multiplies the specific gravity by 997.5 to get the density in kg/m³, the SI unit. It reports the result for each specimen, along with the method, liquid, and conditioning used.

    ASTM D792 Testing Process and Data Collection

    Technicians select the method, condition the specimens where required, and weigh each specimen in air. They then immerse the specimen in the liquid at the specified temperature and weigh it again. The laboratory records the mass in air, the apparent immersed mass, the mass of the sinker and wire, and the liquid temperature, and it calculates the specific gravity and density of each specimen. The report gives the average specific gravity for all specimens from a sampling unit.

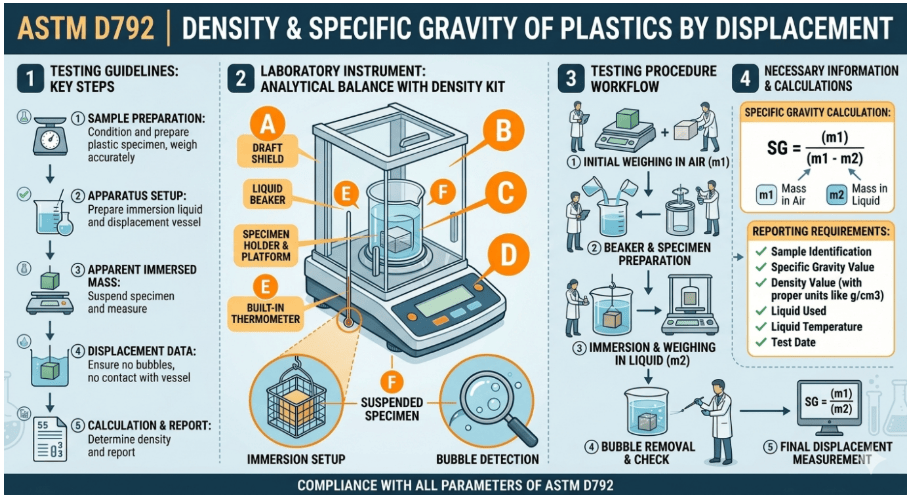

    The image shows plastic specimens being conditioned, immersed in water using a displacement apparatus, weighed in air and while submerged, and evaluated through specific gravity and density calculations under ASTM D792.
    ASTM D792 Testing Procedures for Determining the Density and Specific Gravity of Plastics by Displacement

    Common Challenges and Troubleshooting

    Air bubbles clinging to the specimen, wire, or sinker are the most common error, because they add buoyancy and lower the apparent mass of the immersed specimen. Technicians check holes and edges, then remove bubbles with a wire. Water temperature matters, since the density of water changes with temperature, so the laboratory keeps the water at 23 ± 2 °C or uses the density of water at the actual temperature. A specimen that absorbs water or another liquid will give a different result. Specimens that float need a sinker. The balance must also be accurate enough for the mass of the specimen. Results from ISO 1183-1 Method A should not be treated as identical, because the two standards are not equivalent.

    ASTM D792 Analysis Results and Interpretation

    This report summarizes the specific gravity and density measured for the tested plastic. It lists the result for each specimen and the average for the sampling unit. This interpretation compares the results with the expected values and compares specimens.

    Read more

    • Laboratory reports specific gravity and density for each specimen and the sampling unit’s average specific gravity. Specific gravity is a ratio of two densities, so it has no unit, and density appears in kg/m³.
    • Technicians record the mass in air, the apparent immersed mass, the sinker and wire mass, the liquid temperature, the method (A or B), the liquid, and the conditioning used, so others can repeat and review the test.
    • Analysts multiply the specific gravity by 997.5 kg/m³, the density of water at 23 °C, to get the density. A specific gravity of 1.20 gives a density of about 1197 kg/m³, and 1000 kg/m³ equals 1 g/cm³.
    •  Engineers compare the measured density with the expected value to identify the material, and read a difference between specimens as a sign of differences in crystallinity, thermal history, porosity, or composition.
    •  The manufacturer or purchaser uses the results for incoming material checks and production monitoring, and does not treat results from ISO 1183-1 Method A as identical to ASTM D792 results.

    Link to ASTM D792 Standard

    FAQ

    What does ASTM D792 measure?
    ASTM D792 measures the specific gravity (relative density) and the density of solid plastics by displacement. The specimen is weighed in air and then weighed while immersed in a liquid.
    Density is reported in kg/m³, the SI unit of density. Specific gravity has no unit.
    Method A tests solid plastics in water. Method B tests solid plastics in liquids other than water.

    Updated on October 29, 2026
