ASTM D471 is a standard test method for determining the liquid resistance of rubber and rubber-like materials, such as oils, greases, fuels, and service fluids. It evaluates changes in physical and mechanical characteristics after controlled liquid exposure to assess potential behavior in the intended application. The method applies to vulcanized rubber, rubber-coated fabrics, and finished rubber items. Depending on the selected procedure, testing can evaluate changes in mass, volume, dimensions, tensile strength, elongation, hardness, and coated-fabric properties. Laboratories can use ASTM D471(Standard Test Method for Rubber Property—Effect of Liquids) results for material comparison, quality control, specification compliance, and research and development.
Get Certified ASTM D471 Testing for Reliable Rubber Resistance Evaluation
The ASTM D471 test method assesses the effects of liquids on rubber materials under controlled conditions. The results can indicate swelling, shrinkage, changes in mass, and loss of mechanical properties. Testing is used for material selection, product development, and quality assurance. The applicable procedure and product specification should guide the evaluation.
What is the Scope of ASTM D471?
ASTM D471 is a standard test method for comparing how well rubber and rubber-like compositions withstand the effects of liquids. It is designed for vulcanized rubber specimens and rubber-coated fabrics, as well as applicable finished commercial articles. The standard includes procedures for assessing changes in mass, volume, dimensions, mechanical properties, and selected coated-fabric properties after liquid exposure. The procedure used will depend on the material and property being assessed.
Objective: Compare rubber materials for their ability to withstand exposure to specified liquids.
Property measurement: Evaluate the mass, volume, dimensions, tensile strength, elongation, hardness, and other coated-fabric properties.
Method: Immerse the specimens in specified liquids for a period and record the appropriate properties before and after the exposure.
Result: Quantitative measurements and calculated change, to assist material comparison and specification evaluation.
Test Limitations: Cellular rubbers and porous compositions, and compressed sheet packing, are generally excluded unless specified in the standard to be applicable.
Environmental conditions: Use the test liquid, exposure temperature, exposure time, and other conditions as required by the selected test procedure.
Applications: Test rubber seals, gaskets, hoses, diaphragms, sleeves, and other parts exposed to service fluids.
What are the uses of ASTM D471 Testing?
The ASTM D471 test provides a method for companies and laboratories to determine how liquid exposure affects rubber materials and components. This standard:
Compares oil, fuel, grease, and other specified liquid resistance of rubber formulations.
Measures the changes in mass, volume, and dimensions of a specimen after exposure.
Compares tensile strength, elongation, and hardness (if applicable).
Provides support for quality control and compliance inspection to pertinent product specifications.
Investigates material degradation during product development and failure analysis.
Provides comparative data used to choose rubber materials for liquid applications.
Which Materials Can Be Tested Under ASTM D471?
ASTM D471 applies to vulcanized rubber, rubber-coated fabric, and appropriate finished rubber articles such as seals, gaskets, hoses, diaphragms, and sleeves. It can be used to compare rubber materials in contact with specified liquids, and most cellular rubbers, porous compositions, and compressed sheet packing are excluded unless there is a suitable procedure provided in the standard.
Why is ASTM D471 Important?
Oils, fuels, greases, and other liquids can cause rubber components to swell, shrink, soften, harden, or deteriorate their mechanical properties. These changes can affect dimensional fit, sealing, flexibility, and component performance. The ASTM D471 standard offers a standardized method for evaluating the response of materials when exposed to a controlled environment. The results can be used for material qualification, quality control, and research.
ASTM D471 Equipment and Sample Preparation Guide
Technicians and laboratory analysts choose the appropriate equipment and preparation procedures based on materials, test liquid, and property being measured. Specimen size, exposure conditions, and measurement parameters must follow the applicable ASTM D471 procedure and product specification.
Technicians identify the rubber material, product form, and intended evaluation. Select applicable specimens prepared from vulcanized rubber sheets, rubber-coated fabrics, or finished articles.
Specimen preparation
Analysts prepare specimens according to the relevant procedure, record initial measurements, and avoid contamination or physical damage.
Specimen dimensions
Standard specimens for ASTM D471 are typically cut from standard sheets (per Practice D3182) with dimensions of 25 x 50 x 2 mm (or approximately 6 x 6 x 0.08 inches for slab specimens, depending on the specific test variation and physical property being measured)
Instrumentation
Calibrated balances, dimensional or volume measurement equipment, and mechanical-property testing instruments as required.
Testing Procedures and Requirements for ASTM D471
The testing sequence is dependent on the property being measured and the type of rubber specimen. Skilled personnel should record initial measurements, control liquid exposure, and complete post-exposure evaluations according to the applicable procedure. Other reference ASTM documents include D92, D97, D287, D412, D445, D611, D751, D865, D975, D1217, D1415, D1500, D1747, D2008, D2140, D2240, D2699, D3182, D3183, D4483, D4485, D4806, and E145. The complete testing procedure for ASTM D471 is given as:
Technicians identify specimens and record material details, initial condition, and the properties selected for evaluation.
Initial measurements
Analysts record applicable starting values, such as mass, volume, dimensions, tensile strength, elongation, or hardness.

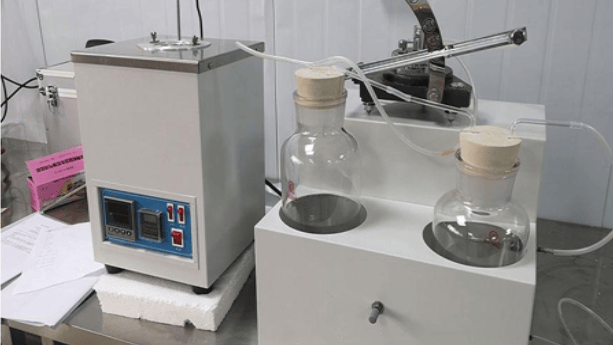

Liquid Exposure
They then expose specimens to the specified liquid under the required temperature, duration, and other test conditions.
Post-Exposure Evaluation
Skilled personnel measure the applicable properties after exposure and record visible changes or other relevant observations.
Calculations and Reporting
Technicians calculate property changes using the appropriate procedure and report specimen details, test liquid, exposure conditions, measurements, and observations.
ASTM D471 Testing Process and Data Collection
The ASTM D471 testing process begins by identifying the rubber type and the property to be evaluated. Technicians take initial measurements, expose specimens to the liquid under controlled conditions, and measure the property after exposure. These may include changes in mass, volume, dimensions, tensile strength, elongation, hardness, breaking resistance, burst strength, tear strength, or adhesion of coated fabric. Analysts also record the test liquid, exposure temperature, exposure time, specimen identification, and observations to support consistent comparison and interpretation.
ASTM D471 Testing Procedure
Common Challenges and Troubleshooting
Inconsistent specimen preparation, contaminated test liquids, uncontrolled exposure conditions, and inaccurate measurements can affect repeatability. Technicians should follow proper procedures for the selected property, verify instrument calibration, treat specimens uniformly, and record test conditions. If specimens show unexpected swelling, shrinkage, cracking, or property loss, analysts should review the liquid identity, exposure conditions, specimen condition, and measurement process before interpreting the results.
ASTM D471 Analysis Results and Interpretation
ASTM D471 testing changes the physical and mechanical characteristics of rubber after exposure to specified liquids. Laboratory reports should record applicable measurements, specimen information, test conditions, and calculated changes for comparison of material performance to applicable material requirements.
What equipment and methods do you use for ASTM D471?
Equipment and methods vary depending on the chosen evaluation and can include measuring mass, volume, dimensions, tensile strength, elongation, and hardness. Ask the testing laboratory to confirm the equipment and procedures available for your requirements.
How do I submit a sample or request an ASTM D471 quote?
Contact the selected laboratory to verify requirements for samples, test liquids, properties to be tested, exposure, and reporting requirements. Please request a quote for the testing scope agreed before sending specimens.
Do you serve clients internationally for ASTM D471?
International service is dependent on the service area, shipping arrangements, and sample-acceptance requirements of the laboratory. Always check availability and shipping/importation requirements with the laboratory.
Is your company accredited to perform ASTM D471 testing?
Accreditation depends on the individual laboratory and its accredited scope. Confirm directly with the laboratory whether it holds relevant accreditation for the requested ASTM D471 tests.
