ASTM E3 Standard Guide for Preparation of Metallographic Specimens

The scope of ASTM E3 includes:

• Material type: Ferrous and non-ferrous metals and alloys such as steels, cast irons, aluminum, copper, titanium, nickel-based alloys, as well as powdered metals.
• Purpose: Manufacturing of metal surfaces that are planar, polished, and free of artifacts for quantitative/tqualitative microstructural analysis.
• Properties  Evaluated: Microstructural characteristics such as grain size, phase distribution, non-metallic inclusions, coating thickness, weld penetration, heat treatment depth, and micro-cracks.

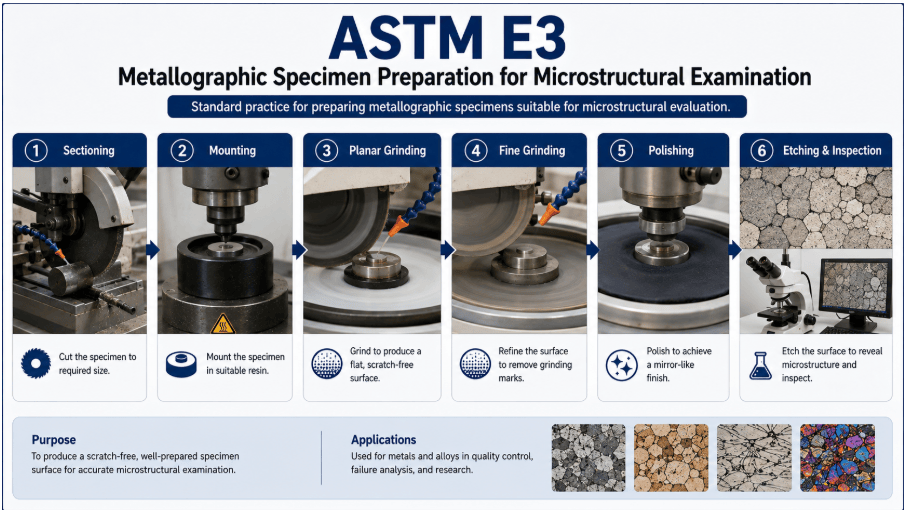

• Testing Method: Mechanical sectioning, mounting (hot compression, cold resin casting), sequential abrasive grinding, diamond/oxide polishing, and chemical etching.
• Results: Technicians prepare the metallographic samples for optical microscopy, scanning electron microscopy (SEM), and microhardness testing.
• Test Limitations: Provides a standardized preparation procedure; specific etching procedures or microstructural ratings need secondary ASTM standards, such as ASTM E407, ASTM E112.
• Use Conditions: Refers to the samples that technicians have sectioned from a raw material, a manufactured component, a failure, or a test coupon and treated in a typical laboratory environment.
• Applications include quality control, failure analysis, heat treatment verification, manufacturing process development, and metallurgical research.

 What are the Uses of ASTM E3Testing?

ASTM E3 provides vital specimen preparation guidelines for the metallurgical, automotive, aerospace, and manufacturing industries. This standard–

• Performs sectioning of metallic specimens with minimal localized overheating and deformation.
• Describes methods for mounting irregular shapes and edges of samples.
• Sets a standard for sequential abrasive grinding and polishing with Silicon Carbide (SiC), diamond suspensions, or alumina.
• Prepares specimen surfaces for phase identification, grain boundary delineation, and chemical etching.
• Accurately tests microhardness (Vickers/Knoop) and quantifies microstructural properties.

What Materials Can Be Tested Under ASTM E3?

ASTM E3 is applicable to most engineering metals and alloys such as carbon and alloy steels, stainless steels, cast irons, aluminum alloys, copper and brass alloys, titanium alloys, nickel-base superalloys, precious metals, and metal-matrix composites.

Why is ASTM E3 Important?

Microstructural analysis is carried out on the surface, which presents the real and intact state of the metal matrix. Wrong cutting or excessive polishing can cause artificial twinning, surface deformation, phase transformation, or inclusion pull-outs, which can result in incorrect material assessments. ASTM E3-01 offers repeatable and proven preparation sequences to avoid preparation artifacts and for consistent cross-laboratory comparison.

ASTM E3 Testing Process and Data Collection

Technicians sample the material to ensure representative samples are taken from locations and orientations that provide the desired microstructural features for examination. The technician cuts the specimen into a suitable size and places it for preparation. The technician grinds and polishes the surface of the specimen to remove the deformation and expose the microstructure. The technician etches the polished surface to show the characteristics of the microstructures. The specimen is then investigated in the lab using light optical microscopy or scanning electron microscopy. The technicians record the preparation methods, images of the microstructures, identification of the specimen, and the test conditions.

Common Challenges and Troubleshooting

The specimen preparation methodology of ASTM E3 creates artifacts when technicians improperly perform it, such as poor sectioning, insufficient grinding, and improper polishing, which will mask the real microstructure. Due to the differing types of equipment and the many different problems that are encountered, only practices that have been found to be generally satisfactory are included in the standard; it does not describe the variations in practice that may be necessary to solve individual problems of specimen preparation. The appropriate location and orientation of the specimen will reduce the number of specimens needed and aid in the interpretation. It is easy to take too few specimens for study, but it is seldom that too many are studied. Technicians perform all work using standard procedures and properly calibrate equipment. If there are any pertinent differences in the repeated preparations, the laboratory checks the validity of the preparation procedures or the setup of the equipment before the final results are reported.

ASTM E3 Analysis Results and Interpretation

The report gives a summary of the preparation procedures and microstructural observations of the metallographic specimen.

• To minimize the number of specimens needed and ease interpretation, the laboratory records the specimen’s location and orientation in the laboratory record.
• The analyst records the sectioning, mounting, grinding, polishing, and etching methods that they use.
• The lab provides microstructural images using light optical or scanning electron microscopy.
• The report notes the observed microstructure and compares it to the specification requirements.
• Technicians make microstructure evaluations to see if it can meet the requirements for inspection, failure analysis, or R&D.
• Engineers correlate the microstructural findings with the relevant product specifications and determine whether the material is suitable for the application.
