ASTM E647 Method for Measurement of Fatigue Crack Growth Rates
The ASTM E647 is the standard test method for crack growth rate measurement and precise calculation of parameters such as the Paris law constants (C and m) or the da/dN against the K relationship. The growth of fatigue cracks can result in catastrophic failure. This test method determines fatigue crack growth rates from near-threshold to Kmax-controlled instability. Crack growth equations are used to predict the crack size starting from a given initial flaw. A crack growth equation can be used to ensure safety, both during the designing and operation phases by predicting the size of cracks. The crack growth rate is given by da/dN.
Read More
GET STARTED
ASTM E647 Introduction
ASTM E647 assesses the effects of fatigue crack growth on the life of cyclically loaded components based on data collected under typical circumstances and enhanced by pertinent information on fracture toughness, defect characterization, and stress analysis. The expression for fatigue crack growth rate is da/dN versus ΔK, which is a function of the crack-tip stress-intensity factor range. The resistance of a material to stable crack extension under cyclic loading is characterized by its fatigue crack growth rate. To stop fatigue cracks from spreading, E647 testing aids researchers and engineers in creating durable materials, improving component designs, and creating maintenance plans. ASTM E647 is the recognized standard methodology for evaluating the progression of cracks in metallic materials under repeated loading. The test employs standardized specimen shapes, such as compact tension (CT) or middle tension (MT), to maintain consistency across measurements. The primary focus here is to determine how quickly a pre-existing crack grows (da/dN) in response to the range of stress intensity factors (ΔK) applied during testing.
The fatigue fracture growth rate measurements are not always geometry-independent since sample thickness might occasionally have a noticeable impact. Data on how thickness affects the pace at which fatigue cracks grow, however, is inconsistent.
Service Name
Remarks
ASTM E647 Testing
Contact US
Get Certified ASTM E647 for Assured Fatigue Performance
ASTM E647 certification shows that laboratories and manufacturers are now able to accurately measure the fatigue crack growth behaviour in metals. It establishes expertise in working fatigue testing systems, crack length measurements, and controlled cyclic loading, as well as generating validated growth-rate curves needed to perform durability tests. ASTM E647 compliance is used in industries to certify materials to be used in aircraft structures, turbine parts, automotive suspensions, biomedical implants, offshore platforms, bridges, and pressure vessels.
ASTM E647 Testing Procedure and Requirements
Test Execution

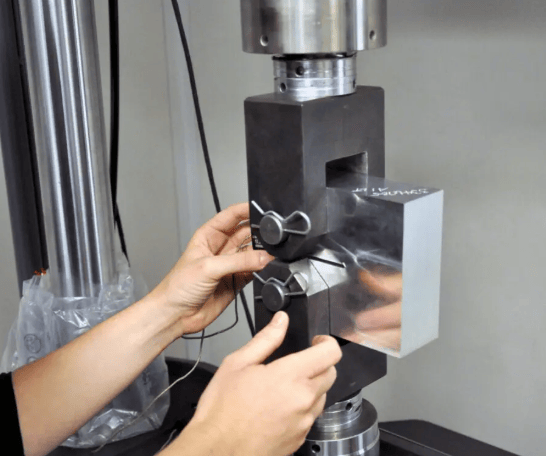

The specimen is mounted securely in the testing apparatus, cyclic loading is applied, and parameters are monitored and maintained. The process continues. until the desired crack length or number of cycles is reached, and finally, the elapsed cycle is recorded.
Data Analysis
Recorded crack length measurements and the corresponding number of cycles are collected to create a crack growth curve. The crack growth rate (da/dN) is calculated using the measured crack length data and the elapsed number of cycles between measurements. The crack growth rate data is analysed using statistical methods or regression techniques. The material’s resistance to fatigue crack growth is evaluated.
Scope of ASTM E647
ASTM E647 is used on metallic materials that are exposed to cyclic elastic loads. It provides procedures for:
The determination of fatigue crack growth rates (da/dN)
Estimation of the range of stress-intensity factors (4 K)
Measuring crack growth thresholds.
Setting up Paris-law parameters of life prediction.
Safety-critical component design: Supporting design to be durable.
ASTM E647 Equipment and Sample Preparation
Specimen Details
The specimen employed in the fatigue crack growth rate testing, as per the ASTM E647, is usually of a metallic material that is pertinent to the research or field of application. It is selected depending on the behavior of the material, crack development, as well as its conformity to the testing apparatus.
Specimen dimensions
The ASTM E647 standard defines the dimensions of specimens to ensure consistency and comparability. CT specimens have length, width, thickness, and crack size, while CCT specimens have length, width, thickness, and crack size and shape.
Specimen preparation
Specimen preparation involves machining the metallic material to obtain the desired dimensions and geometry, maintaining integrity, and using surface finishing techniques to remove defects.
Use of ASTM E647
ASTM E647 has found application in the material choice, structural design, and failure prevention of aerospace fuselage skins, turbine blades, aircraft engine discs, automotive frames, marine structures, oil and gas pipelines, nuclear components, biomedical implants, and bridge steels.
Assists the engineers in determining the remaining life, setting inspection periods, testing repaired parts, testing new alloys, and testing service failures.
This approach lies at the core of damage-tolerant design principles in which crack propagation, rather than crack formation, is of safety interest.
Common Challenges and Troubleshooting in ASTM E647
The difficulties encountered are unstable load ratios, crack-growth retardation, irregularity of crack measurements, machine misalignment, overheating of high frequency, and noise of compliance measurements. Misalignment, calculation errors, ΔK, and surface oxidation may cause errors. Careful loading of the surface, correct specimen machining, and constant cyclic loading can increase test reliability greatly.
ASTM E647 Testing Technique, Process, and Data Collection
The difficulties encountered are unstable load ratios, crack-growth retardation, irregularity of crack measurements, machine misalignment, overheating of high frequency, and noise of compliance measurements. Misalignment, calculation errors, ΔK, and surface oxidation may cause errors. The process of troubleshooting includes checking system calibration, frequency control, good gripping, environmental stability, and re-checking measurements in case of cracks. jumps or anomalies. Careful loading of the surface, correct specimen machining, and constant cyclic loading can increase test reliability greatly.
Analysis, Results, and Interpretation for ASTM E647
The outcomes are presented as crack-growth rate (da/dN) vs. 0. The low growth rates indicate good fatigue resistance, whereas the high values of da/dN indicate those materials that tend to extend rapidly in the crack. Paris-law slope and threshold values are used to describe the behaviour of alloys to long-term cyclic loading. Interpretation takes into consideration microstructure, heat treatment, environment, loading frequency, and stress ratio.
Problem & The Solution for ASTM E647
Problem: Unstable crack propagation, crack jumps, inaccurate measurement, or unstable cyclic loading result in non-representative growth-rate data.
Solution: Align machines better, confirming the stability of cyclic loads, optimizing the pre-cracking processes, assuring accurate optical or compliance measurements, and controlling environmental conditions. Accuracy is improved by calibration of load cells and displacement sensors on a regular basis.
Factors to Consider for ASTM E647
Speed: Intermediate, which varies with the rate of crack growth and 8K levels.
Expert: Elite operators who were needed to measure the crack and to calculate Delta K.
Cost: The expensive fatigue equipment and optical systems add to the cost, yet the quality of fatigue analysis is very reliable and will help to avoid catastrophic structural failures.
Related
FAQ's
Where can I get the astm e647 tested?
You can share your astm e647 testing requirements with MaTestLab. MaTestLab has a vast network of material testing laboratories, spread across the USA and Canada. We support your all material testing needs ranging from specific astm e647 test to various testing techniques.
How much do I need to pay for the astm e647 test?
Please contact us for a detailed quote for your astm e647 testing needs. Cost incurred to carry out different astm e647 testing methodology depends on the type of raw material; number of samples, coupons, or specimens; test conditions, turn around time etc. Costs of some ASTM testing methods start from $100 and the final value depends upon the factors listed above. Please contact us for the best and latest prices.
How many samples are required for astm e647?
The required number of samples or specimens should comply with the procedure given in the astm e647 standard. However, the MaTestLab operations team can assist you for your special requirements once you share your testing details with us.
How much discount can I get on the astm e647 test?
MaTestLab has a vast testing laboratory network, hence we bring you the best testing facilities in a cost-effective way. We offer considerable discounts (15-20%) to our returning customers based on test volume and frequency.
How many days will it take to complete the astm e647 test?
The turnaround time for astm e647 test methodology depends upon the test procedure mentioned in the standard test document. However, we at MaTestLab understand your research requirements and hence try to get your test completed within the least possible time.
