ASTM D1654 Evaluation of Painted or Coated Specimens Subjected to Corrosive Environments

What is ASTM D1654?

ASTM D1654 is a standard test method that establishes procedures for evaluating the condition of painted or coated metallic specimens after exposure to corrosive environments. The standard does not measure the corrosion process itself, but instead offers a systematic way to evaluate the amount of failure in the coating, corrosion creep, blistering, and deterioration of the substrate that occurs after corrosion testing. It is frequently used after corrosion exposure tests like salt spray, salt fog, cyclic corrosion, or other accelerated environmental exposure tests. Coatings are assessed according to a set of standard rating scales, which are based on the depth of corrosion from a pre-cut line of weakness, or from the damaged area, and the condition of the coated surface. ASTM D1654 is used in the automotive, aerospace, construction, marine, protective coatings, industrial equipment, and other industries to assess coating durability, compare coating systems, and verify corrosion protection performance.

Get Certified ASTM D1654 Testing for Reliable Corrosion Resistance Evaluation

ASTM D1654 is a standard test method for assessing painted or coated metallic specimens exposed to corrosive conditions in a standard corrosion rating test. The corrosion, blistering, adhesion loss, and degradation of the coating are verified by laboratory testing to meet ASTM requirements. Repeatable evaluations conducted consistently, according to ASTM D1654, can aid in product development, quality assurance, coating selection, compliance with specification, and customer confidence.

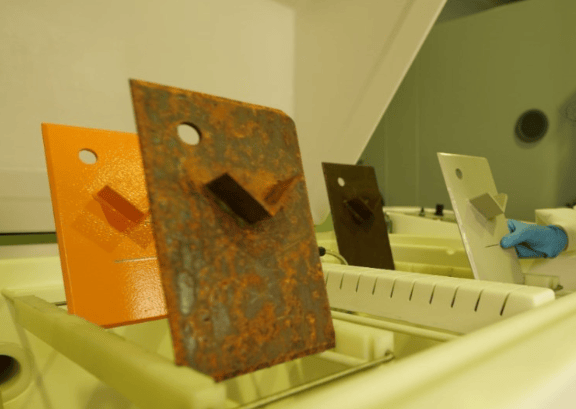

ASTM D1654 Equipment and Sample Preparation Guide

Representative coated metallic samples and well-calibrated laboratory equipment are needed to properly evaluate coating performance after exposure to corrosive environments according to ASTM D1654. Proper sample preparation, controlled exposure, and standardized visual evaluation procedures facilitate accurate, repeatable, and standards-compliant corrosion resistance assessment.

Testing Procedures and Requirements for ASTM D1654

ASTM D1654 is a standard test method to characterize the condition of painted or coated metallic specimens after corrosive exposure by visual examination and by assigned corrosion ratings.

ASTM D1654 Testing Process and Data Collection

The ASTM D1654 test method begins with preparing representative coated metal specimens and introducing a controlled scribe into the coating to expose the substrate. The samples are then subjected to the test environment, e.g., salt spray or cyclic corrosion testing for the duration. The specimens are then cleaned (as needed) and inspected for corrosion, blistering, coating deterioration, and corrosion creep from the scribed area. The evaluation records corrosion rating, blister rating, exposure time, environmental conditions, specimen identification, coating data, lab observations, and photographic documentation to ensure complete traceability and compliance with ASTM D1654 requirements.

What is the Scope of ASTM D1654 Test Standard?

ASTM D1654 sets the standard for tests of samples of coated or painted metal following exposure to corrosive environments. It provides uniform corrosion ratings, making product development, quality assurance, and comparison of coatings easier. The scope includes:

• Sheathes coated and painted metal objects placed in a corrosive environment.
• Checks corrosion creep on scribed or damaged areas of the coating.
• Evaluates the degradation of the coating, blistering, rust, and corrosion of the substrate.
• Supports quality control, coating development, and comparison of coating performance.
• Establishes uniform corrosion rating tests for protective coatings.
• Uses on metallic materials coated with paints, coatings, and other protective finishes.

What are the Uses of ASTM D1654 Testing?

Coating manufacturers, product developers, engineers, and quality assurance laboratories can measure the corrosion resistance of protective coatings after they have been exposed to hostile environments using ASTM D1654 testing. The results will be used for comparing coating systems, for checking the quality of products, and to enhance long-term corrosion protection.

• ASTM D1654 is a test used to assess the corrosion resistance of painted and coated metal specimens after exposure to the environment.
• The standard is used by coating manufacturers to compare protective coating formulations to enhance product performance.
• Automotive manufacturers use corrosion resistance testing for vehicle body coatings and protective finishes.
• Coatings are durability tested in aerospace and marine applications.
• Quality assurance laboratories use ASTM D1654 to evaluate coating performance and support specification compliance.
• Research organizations evaluate new coating technologies and Corrosion Protection systems.
• The standard supports product certification, coating development, quality control, and durability testing.

What Materials Can Be Tested Under ASTM D1654?

ASTM D1654 is used for painted and coated metallic substrates, such as carbon steel, galvanized steel, aluminum, stainless steel, iron, and other metal parts that are covered with organic coatings, powder coatings, industrial paints, automotive paints, marine paints, protective primers, and corrosion-resistant coating systems.

Why is ASTM D1654 Important?

ASTM D1654 is a standard evaluation method used to assess coating deterioration, corrosion creep, and related defects after protective coatings have been exposed to corrosive environments. The method can assist manufacturers in finding the weakness of the coating, enhancing corrosion protection, extending the service life of the product, and decreasing maintenance costs. The standard supports quality control, product development, comparison of coating systems, and consistent corrosion ratings that facilitate comparison between laboratories and coating systems.

Common Challenges and Troubleshooting

Specimen preparation, exposure conditions, equipment calibration, and evaluation procedures need to be consistent to guarantee reliable and repeatable ASTM D1654 testing. Common issues include inconsistent conditions, lack of consistent scribe preparation, contamination problems, inconsistent coating thickness, instrument calibration issues, and subjectivity in interpreting images by the observer. A well-controlled testing environment, calibration of corrosion chambers, uniformity of specimens, and conformance to standard rating procedures are some factors that help to achieve accurate, repeatable, and reliable corrosion assessment.

Analysis Results and Interpretation

• The corrosion creep, blistering, rusting, and degradation of the protective coating after exposure to the given corrosion environment are measured, thereby evaluating the protective performance of the protective coating system.
• The final laboratory report includes complete documentation of the corrosion evaluation process, including corrosion ratings, blister ratings (where applicable), specimen identification, exposure duration, exposure conditions, coating information, and visual observations.
• The observed corrosion is compared to the ASTM D1654 criteria for corrosion ratings and appropriate product specifications to assess the coating’s resistance to corrosive attack on the metallic substrate.
• Coatings with low corrosion creep, less blistering, and good surface condition are likely to have good corrosion performance and are appropriate for long service life in an aggressive corrosion environment.
• Products that achieve acceptable ASTM D1654 evaluation results and satisfy applicable product or customer specifications may be considered suitable for applications requiring durable corrosion protection.

What are the Factors to Consider for ASTM D1654 Testing?

• Speed: Efficient corrosion evaluation enables quick coating qualification, product development, and approval in manufacturing.
• Expertise: Trained lab workers make sure that the specimen is prepared properly, exposed to corrosion, and then observed and rated for corrosion.
• Cost: Coating deficiencies can be identified early, which will help lower maintenance costs, increase the performance of the coating, reduce product failures, and extend the service life.

Link to ASTM D1654

By Suyog Kamble

Suyog Kamble is an Operations Associate at MaTestLab Inc. and holds a postgraduate degree in Organic Chemistry.
