ASTM D4169 Performance Testing of Shipping Containers and Systems

ASTM D4169 Introduction

ASTM D4169 outlines a consistent and reliable procedure for assessing the performance of shipping containers and systems under simulated distribution environments. The test involves subjecting the containers to a series of mechanical and environmental stresses that mimic real-world transportation and handling scenarios. By replicating the stresses experienced during shipping, the ASTM D4169 standard aims to ensure that the containers can adequately protect their contents, reducing the risk of damage and losses during transit.

Performance testing of shipping containers is critical in maintaining product integrity, preserving brand reputation, and meeting customer expectations. The ASTM D4169 standard provides a uniform basis of evaluating, in a testing lab, the ability of shipping units to withstand the distribution environment.

ASTM D4169 Test Method

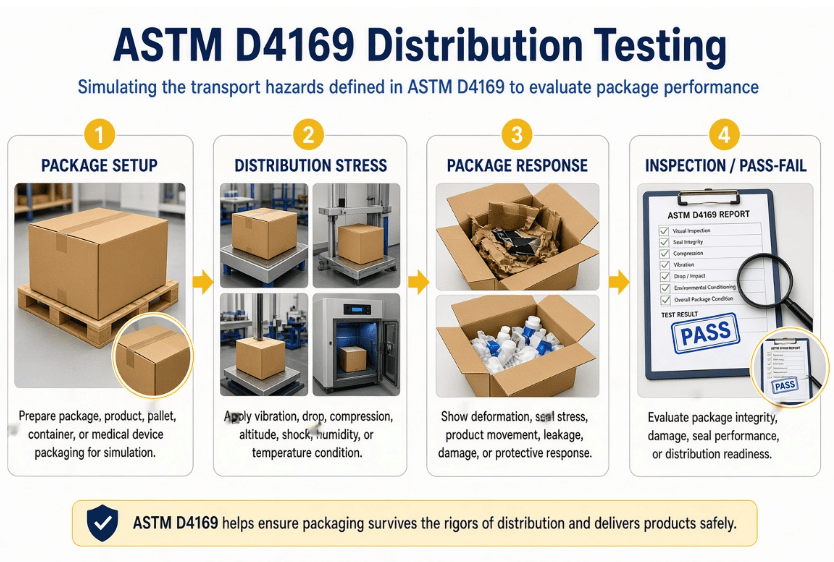

The ASTM D4169 test method employs a combination of mechanical tests and environmental conditioning to evaluate the performance of shipping containers. The test is conducted as follows:

ASTM D4169 Equipment and Sample Preparation

ASTM D4169 Results and Interpretation

The data obtained from ASTM D4169 testing provides insights into the performance of shipping containers under realistic conditions. Interpreting the results allows stakeholders to identify potential weaknesses, such as inadequate cushioning, weak seals, or vulnerable corners, and take corrective actions to strengthen the packaging. Improving container designs based on these test results can lead to reduced product damages, minimized losses, and enhanced customer satisfaction.

Tests Related to ASTM D4169

ASTM D7386 Standard Practice for Performance Testing of Packages for Single Parcel Delivery Systems is a related standard.

Use of ASTM D4169 in Various Industries

It is widely applied in industries such as pharmaceuticals, electronics, food, and automotive for the integrity of drugs and medical devices on delivery and the minimization of shipping damage in electronics by simulating hazards like vibration, compression, and impact.

Materials Commonly Tested with ASTM D4169

The standard tests the materials like corrugated boxes, plastic containers, metal crates, and palletized loads based on the product requirement. Plastic containers are used for durability in moist conditions, whereas corrugated boxes are cheaper in terms of light weight.

Common Challenges and Troubleshooting in ASTM D4169 Testing

The biggest challenges of testing are not accurately simulating the true environment of exposure because a realistic environment in real-world exposures may vary greatly. Troubleshooting usually implies readjusting parameters so as to fit shipping conditions. To choose the proper Assurance Level requires experience as well as fine-tuning, fitting into cost effectiveness and durability requirements.

Safety and Best Practices in ASTM D4169 Testing

The testing safety requires the operators to take precautions from potential hazards, such as high-impact tests and heavy packaging materials. The best practices include wearing protective gear, proper equipment setup and maintenance, regular calibration, and ensuring machinery compliance with safety standards and operator training.

Importance of ASTM D4169

It is a standard that reduces shipping damage, saves costs, and enhances customer satisfaction by simulating transportation stress. It helps companies predict packaging performance, identify weaknesses, and make informed material selection and design adjustments to ensure reliability and safety.
