ASTM D3222 Standard Specification for Unmodified Poly (Vinylidene Fluoride) (PVDF) Molding Extrusion and Coating Materials

Get Certified ASTM D3222 Testing for Reliable PVDF Material Performance

PVDF manufacturers and users require consistent material properties for molding, extrusion, and coating applications. ASTM D3222 provides a standardized specification for evaluating unmodified PVDF homopolymer resin. Laboratories use the following applicable tests to establish whether PVDF materials comply with the requirements. The results support material qualification, quality control, production checks, and comparison of unmodified PVDF resin grades. ASTM D3222 does not intend the test results in the table to serve as engineering design data.

• Applies to virgin, unmodified PVDF homopolymer.
• Applies to PVDF in pellet or powder form.
• Includes materials for molding, extrusion, and coating.
• Covers Type I and Type II PVDF fluoroplastics.
• Sets standards for certain physical, mechanical, thermal, and electrical properties.
• Establishes uniform procedures for compression-molded specimens.
• Supports specification and quality-control activities.

What are the Uses of ASTM D3222 Testing?

ASTM D3222 testing assesses the properties of unmodified PVDF homopolymer against the specified requirements in the laboratory. Engineers and manufacturers use the results to support material qualification and quality-control programs. This specification-

• Tests selected properties of PVDF materials.
• Supports quality-control testing.
• Helps compare unmodified PVDF resin materials.
• Assists with material qualification for processing applications.
• Provides information about materials used for molding and extrusion.
• Supports the assessment of PVDF coating materials.
• Helps check compliance with specified requirements, as appropriate.

What are the materials that can be tested according to ASTM D3222?

ASTM D3222 covers virgin (unmodified) PVDF homopolymer in thermoplastic resin form, either as pellets or powder. The standard excludes copolymers, reinforced or filled grades, and specially modified PVDF containing additives or treatments that affect the material’s properties. Before testing, laboratories must identify the sample’s chemical, physical, or biological nature and its form, then determine the required tests and properties for evaluation.

Why is ASTM D3222 Important?

ASTM D3222 specifies requirements for unmodified PVDF homopolymer materials in a uniform manner. It sets standards for several material characteristics rather than for a single performance criterion. PVDF materials can exhibit polymorphism and can develop crystalline structures that change with thermomechanical history. Therefore, specimen preparation can affect the measured properties. ASTM D3222 provides guidelines for specimen preparation to help laboratories achieve consistent evaluation results. In addition, PVDF fluoroplastics have a reported melt temperature of approximately 156–180 °C (312–356 °F) and thermal stability of approximately 370 °C (698 °F), as specified.

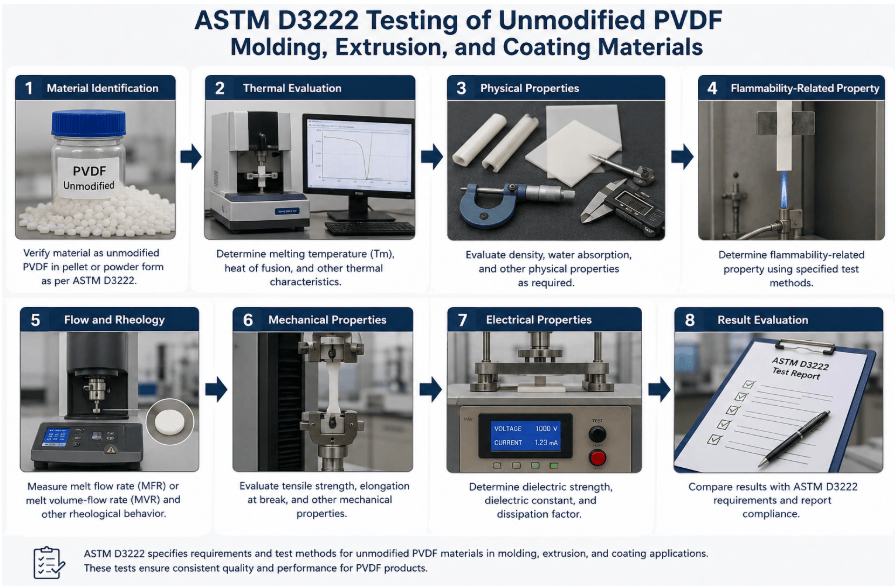

ASTM D3222 Testing Process and Data Collection

The analysts first determine the PVDF resin identity and verify whether it is within the scope of ASTM D3222. The technicians then process the material and specimens as per requirements. The laboratory conducts thermal, physical, mechanical, flow, rheological, electrical, and other relevant tests. The technicians record the measured values in the relevant units. The analysts then compare the test results with the applicable specification requirements. The final report describes the material identification, specimen preparation, test results, and laboratory observations.

Common Challenges and Troubleshooting

Accurate ASTM D3222 results require proper material identification, specimen preparation, equipment condition, and test procedures. Because PVDF has a thermomechanical history and natural polymorphism, preparation and processing conditions may influence the measured properties. ASTM D3222 applies only to virgin, unmodified PVDF homopolymer and excludes PVDF copolymers, reinforced grades, and filled grades. Therefore, different formulations or preparation methods may produce results that exceed or fall below the specified limits.

• The laboratory measures thermal and physical properties, including peak melting endotherm (J/g), specific gravity, and refractive index, to evaluate the material’s thermal and physical characteristics.
• The analyst measures flow and rheological characteristics, including flow rate, to assess the material’s flow behavior.
• The laboratory measures mechanical properties, such as tensile strength, elongation, bend characteristics, and impact resistance, to evaluate the material’s mechanical performance.
• The laboratory measures electrical properties, including D-C resistance, dielectric strength, dielectric constant, and dissipation factor, to evaluate the electrical characteristics of PVDF.
• The report combines the measured values with the relevant standards to support material specification, quality control, and conformity assessment.
