ASTM E1077 specifies methods for determining total depth and free decarburization depth and for measuring partial decarburization depth of wrought or cast steel products by optical, microindentation hardness, and chemical techniques. The main uses of ASTM E1077 are to confirm heat treatment quality, monitor furnace atmosphere control during hot working, and verify the surface carbon integrity of critical automotive, aerospace, and structural steel components.
The scope of ASTM E1077 includes:
- Material type: Carbon steels, alloy steels, tool steels, stainless steels, and cast steel products that have been annealed, normalized, quenched, or tempered.
- Purpose: Evaluation of surface carbon level and depth of decarburization in steel specimens processed.
- Elements analyzed: Depth of decarburization (total depth, free ferrite depth, and partial carbon loss depth).

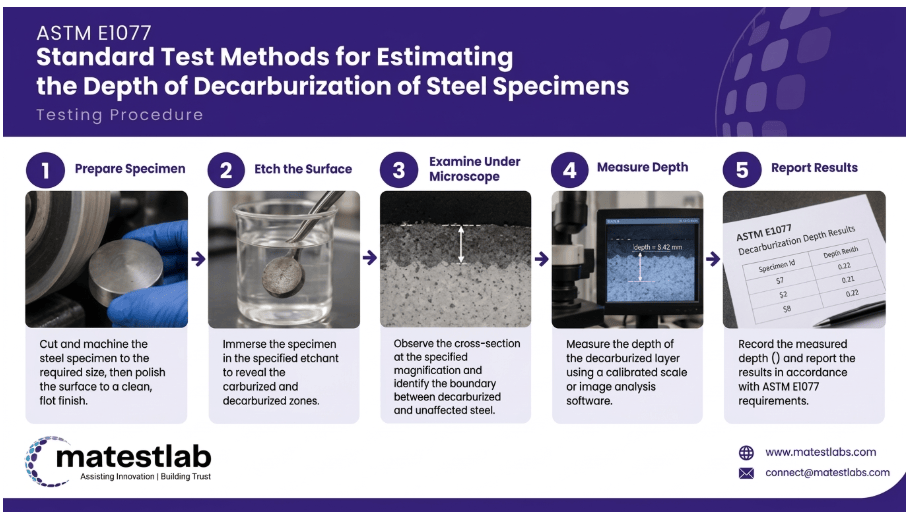

- Method: Testing uses high edge-retention metallographic mounting to prepare polished and etched steel cross-sections. The transition between depleted surface layers and the core matrix is measured by optical microscopic evaluation, microindentation hardness traverses (Knoop or Vickers), or layer-by-layer chemical analysis.
- Results: Total decarburization depth in millimeters or inches, Free decarburization depth in millimeters or inches, and Partial decarburization depth in millimeters or inches.
- Test Limitations: Indicates surface carbon loss only, not internal carburization levels, and edge-retention preparation is required to avoid beveling artifacts that affect the test results.
- Environmental conditions: Standard laboratory environment (about 23∘C±5∘C) for metallographic preparation and measurements
- Applications: Automotive fastener manufacturing quality control, aerospace forging inspection, heat treatment atmosphere validation, spring wire evaluation, and failure analysis of fatigue-critical components.
What are the Uses of ASTM E1077 Testing?
ASTM E1077 implementation helps metallurgical analysts and quality control managers confirm surface carbon integrity quickly, for routine production monitoring and for failure investigations. In addition, the standard testing procedure offers a uniform basis for comparing the efficiency of furnace atmospheres from one manufacturing plant to another. This standard-
- Safety-related jobs in steel rolling, forging, annealing, and hardening with quality control.
- Assists in mechanical engineering calculations of fatigue-critical components under cyclic loading.
- Provides information for optimization of protective furnace atmospheres (endothermic gas, vacuum, etc.).
- Ensures the material properties are correct, including the maximum allowable amount of surface carbon loss.
- Helps to determine the causes of early fatigue failure or cracking of heat-treated parts.
What Materials Can Be Tested Under ASTM E1077?
ASTM E1077 covers a wide variety of carbon, alloy, tool, spring, and martensitic stainless steels as well as products cast and high-temperature processed steel. It applies to raw materials such as hot-rolled bar stock, wire rods, plates, and forgings as well as to finished products such as automotive fasteners, gears, and springs. Materials are assessed at any stage in the processing route, from as-rolled to annealed, normalized, or fully quenched and tempered. The testing evaluates the surface carbon loss for these various grades of steel to ensure that no decarburization occurs to the extent that it reduces either the surface hardness or the surface wear resistance. In the end, the number of carbon depletions per material category allows for ensuring the structural integrity and fatigue life of the components in challenging applications.
Why is ASTM E1077 Important?
ASTM E1077 establishes a uniform quality system for the steel mill, heat treater, and component manufacturer to ensure the surface metallurgical quality is confirmed before deployment into service. Too deep a decarburization depth leads to a decrease in the surface yield strength, endurance limits, and fatigue cracking, and to a rapid rate of wear. Too much carbon escape at the surface during production results in expensive failure of the components in service. ASTM E1077 standard evaluation procedures deliver the best surface integrity without the high cost of field replacements and provide long-term structural reliability.
