ASTM D3034 Standard Specification for Type PSM Poly (Vinyl Chloride) (PVC) Sewer Pipe and Fittings

    What is ASTM D3034?

    ASTM D3034 is a standard specification that establishes requirements for Type PSM poly (vinyl chloride) (PVC) sewer pipe and fittings. This specification applies to PVC pipe and fittings used primarily for underground, gravity-flow sewer and drainage applications. This method helps manufacturers produce pipes and fittings with consistent dimensions, material characteristics, strength, stiffness, and performance. The standard covers various pipe sizes and stiffness grades, allowing engineers to choose a product based on application and installation requirements. ASTM D3034 also establishes requirements for the PVC materials, workmanship, dimensions, pipe stiffness, flattening resistance, impact resistance, extrusion quality, and other applicable properties. This specification enables product quality control, material selection, manufacturing consistency, and reliable performance in sewer and drainage applications.

    Read more

    Get Certified ASTM D3034 Testing for Reliable PVC Sewer Pipe and Fittings

    Reliable gravity-flow sewer and drainage systems require PSM PVC pipe and fittings that meet dimensional and performance specifications. ASTM D3034 provides standardized requirements that manufacturers and laboratories can use to evaluate the quality and conformity of these products. This method assesses material properties, workmanship, size, flattening, impact resistance, pipe rigidity, extrusion quality, joining systems, and marking. These evaluations help manufacturers maintain consistent production and help users select pipes and fittings that meet the applicable specification requirements. ASTM D3034 (specification for type PSM poly (vinyl chloride) (PVC) sewer pipe and fittings) is a standard specification that establishes requirements for type PSM poly (vinyl chloride) (PVC) sewer pipe and fittings.

    What is the Scope of ASTM D3034?

    ASTM D3034 covers requirements and test methods for Type PSM poly (vinyl chloride) (PVC) sewer pipe and fittings. The specification addresses the material, dimensional, mechanical, and quality requirements needed to evaluate these products. The ASTM D3034 standard-

    Read more

    • Covers Type PSM PVC sewer pipe and fittings and specifies requirements for materials and workmanship.
    • Evaluates pipe and fitting dimensions and includes flattening resistance requirements.
    • Evaluates impact resistance, pipe stiffness, extrusion quality, and joining systems.

    What are the uses of ASTM D3034 testing?

    ASTM D3034 applies to Type PSM poly (vinyl chloride) (PVC) sewer pipe and fittings. The specification evaluates products manufactured for sewer applications and includes requirements for the materials used to produce the pipe and fittings.

    Why is ASTM D3034 Important?

    ASTM D3034 is a standard for manufacturers to evaluate Type PSM PVC sewer pipe and fittings. Varying quality, size, rigidity, shock resistance, and craftsmanship can affect product consistency if requirements are not consistent.

    ASTM D3034 Equipment and Sample Preparation Guide

    ASTM D3034 requires different measuring and testing equipment according to the property under evaluation. Laboratories choose representative sections of pipe or fittings and prepare them as per applicable test procedure. Technicians check products, measure the necessary parameters, and perform mechanical or quality testing under specific conditions.

    Read more

    Sample and Specimen DetailsLaboratories test representative Type PSM PVC sewer pipe sections and fittings selected from the product under evaluation.
    Specimen PreparationTechnicians cut or prepare pipe and fitting specimens according to the applicable dimensional, flattening, impact, stiffness, joint-tightness, or extrusion-quality test procedure.
    Specimen DimensionsASTM D3034 provides dimensional requirements according to the nominal pipe size and applicable SDR classification. Laboratories should use the dimensions and specimen requirements specified for the selected product and test procedure.
    InstrumentationDimensional measuring equipment, wall-thickness measuring equipment, pipe stiffness testing machines, flattening test equipment, impact testing apparatus, joint-tightness equipment, extrusion-quality test equipment, and appropriate fixtures.

    Testing Procedures and Requirements for ASTM D3034

    ASTM D3034 requires laboratories to test the appropriate pipe and fitting properties through standard methods. Technicians examine the product, measure, prepare necessary specimens, and perform the applicable mechanical and quality tests. The testing procedures and requirements for ASTM D3034 are given as:

    Read more

    Other reference ASTM documents include D618, D1600, D1784, D2122, D2152, D2321, D2412, D2444, D2564, D2749, D2855, D3212, F412, and F1336.

    Material and Workmanship InspectionTechnicians inspect the PVC pipe and fittings for conformity, homogeneity, and visible defects that could affect product quality.
    Dimensional Evaluation and Pipe FlatteningTechnicians measure applicable outside diameter, wall thickness, socket dimensions, and other required dimensions and apply the flattening test to the appropriate pipe sample and check for splitting, cracking, or breakage.
    Impact Resistance and Pipe StiffnessAnalysts test the pipe under the specified impact conditions and evaluate its resistance to impact damage. Then, they apply compressive loading as required and determine pipe stiffness as per the applicable procedure.
    Joint Tightness and Extrusion QualityTechnicians evaluate the applicable joining system for leakage or conformity with the specified requirements and perform the applicable quality evaluation to identify flaking, disintegration, or other unacceptable extrusion characteristics.
    Result EvaluationLaboratories compare the measured values and observations to the applicable ASTM D3034 requirements.

    ASTM D3034 Testing Process and Data Collection

    Analysts first choose representative samples of pipe or fittings and determine the product dimensions and classification. Technicians then check the material and workmanship and measure the desired physical dimensions. Next, the laboratory performs the applicable flattening, impact, pipe stiffness, joint-tightness, and extrusion-quality tests. Technicians document dimensional, load, deformation, impact performance, and stiffness results; test conditions; and cracking, splitting, leakage, flaking, or other observations. The laboratory compares the collected data with the requirements of the relevant ASTM D3034 standard to determine product conformity.

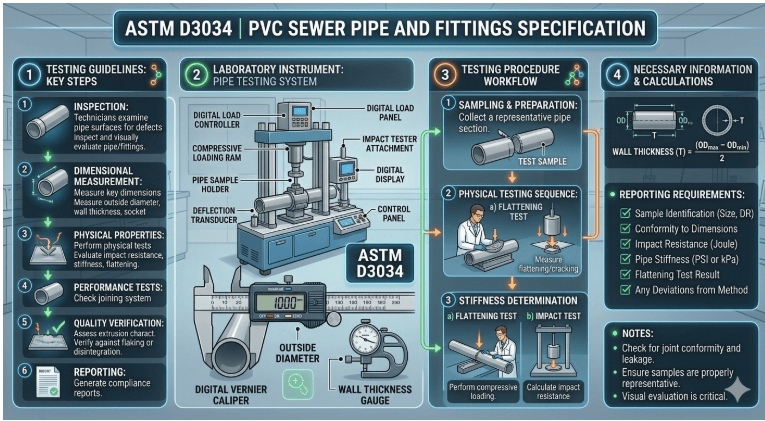

    This image depicts a universal testing machine used for dimension measurement as per ASTM D3034.
    ASTM D3034 Universal Testing Machine

    Common Challenges and Troubleshooting

    Accurate testing requires representative samples, proper equipment calibration, and correct specimen preparation. Results may vary depending on pipe size, wall thickness, specimen handling, or test conditions. Common challenges include incorrect dimensional measurements, nonrepresentative pipe or fitting samples, improper specimen preparation, incorrect alignment during stiffness testing, specimen damage before testing, and incorrect joint assembly. Technicians must calibrate equipment, follow applicable test procedures, maintain consistent test conditions, and carefully interpret all observations.

    ASTM D3034 Analysis Results and Interpretation

    • ASTM D3034 results are reported based on the pipe size, SDR classification, fitting configuration, and selected test requirements.
    • The specification tests dimensions, flattening resistance, impact resistance, pipe rigidity, extrusion quality, and joining-system performance.
    • Engineers report pipe stiffness in kPa and impact resistance in J.
    • Analysts record joint-tightness results based on the applicable leakage or conformity requirements.

    Link to ASTM D3034

    Read more

    FAQ

    Where can I get the astm d3034 tested?
    You can share your astm d3034 testing requirements with MaTestLab. MaTestLab has a vast network of material testing laboratories, spread across the USA and Canada. We support your all material testing needs ranging from specific astm d3034 test to various testing techniques.
    Please contact us for a detailed quote for your astm d3034 testing needs. Cost incurred to carry out different astm d3034 testing methodology depends on the type of raw material; number of samples, coupons, or specimens; test conditions, turn around time etc. Costs of some ASTM testing methods start from $100 and the final value depends upon the factors listed above. Please contact us for the best and latest prices.
    The required number of samples or specimens should comply with the procedure given in the astm d3034 standard. However, the MaTestLab operations team can assist you for your special requirements once you share your testing details with us.
    MaTestLab has a vast testing laboratory network, hence we bring you the best testing facilities in a cost-effective way. We offer considerable discounts (15-20%) to our returning customers based on test volume and frequency.
    The turnaround time for astm d3034 test methodology depends upon the test procedure mentioned in the standard test document. However, we at MaTestLab understand your research requirements and hence try to get your test completed within the least possible time.
