SAE J423 Methods of Measuring Case Depth

    SAE J423 Introduction – What is Case Depth Measurement Analysis?

    Case Depth Measurement Analysis is a metallurgical evaluation designed to measure the thickness of a metal component’s hardened exterior layer, or case. This analysis is typically applied to parts subjected to surface-hardening processes such as carburizing, nitriding, carbonitriding, induction hardening, or flame hardening to verify improved wear resistance while preserving a robust core. SAE J423 (Methods of Measuring Case Depth) provides a consistent set of procedures for measuring the case depth in case-hardened ferrous parts. The depth of the case affects the wear resistance, fatigue life, bearing capacity, and toughness of the core. The standard specifies procedures for the measurement of the case depth for components manufactured by carburizing, nitriding, carbonitriding, cyaniding, induction hardening, and flame hardening. SAE J423 helps manufacturers to ensure heat treatment quality, optimize heat treatment parameters, and prove compliance with engineering specifications for automotive, aerospace, industrial, mining, and heavy equipment components.

    Read more

    Get SAE J423 Case Depth Testing for Reliable Heat Treatment Quality

    SAE J423 testing verifies that case-hardened steel components meet the specified effective or total case depth requirements before service. Correct case depth measurement ensures that heat treatment processes,  including carburizing, nitriding, carbonitriding, induction hardening, and flame hardening, deliver the appropriate hardened depth for maximum performance. Through SAE J423 testing, manufacturers can verify product consistency, confirm heat treatment quality, reduce the risk of premature component failure, and demonstrate compliance with customer and engineering specifications.

    What is the Scope of SAE J423?

    • Measures effective case depth and total case depth of case-hardened steel components.
    • Applies to carburized, nitrided, carbonitrided, cyanided, induction hardened, and flame hardened steels.
    • Employs hardness testing, metallographic examination, and chemical analysis.
    • Helps verify heat treatment quality and process consistency.
    • Assists in quality control, product qualification, and failure analysis.

    What is the Use of SAE J423 Test Standard?

    • Measures effective and total case depth.
    • Evaluates the results of carburizing, nitriding, induction hardening, flame hardening, and other case-hardening processes by measuring case depth.
    • Supports heat treatment quality control.
    • Assists in metallurgical failure investigations.
    • Follows engineering specifications.

    Why is Case Depth Measurement Important?

    Proper case depth provides a hard, wear-resistant surface while maintaining a tough and ductile core, improving resistance to wear, fatigue, contact stress, and surface damage. Proper measurement allows manufacturers to optimize their heat-treating processes and to produce components with longer service life.

    Read more

    What Properties Does SAE J423 Measure?

    SAE J423 provides methods for measuring effective case depth and total case depth using hardness, metallographic, or chemical analysis techniques.

    Common Challenges and Troubleshooting

    Technicians experience incorrect measurements if the specimen is not prepared correctly, too much grinding, poor polishing, incorrect spacing for the hardness, or insufficient etching. Sectioning, specimen preparation, calibrated microhardness machines, and standard measurement techniques ensure greater accuracy and repeatability.

    SAE J423 Testing Technique, Process, and Data Collection

    Technicians perform heat treatments on parts and make polished cross-sections for analysis. They perform microhardness testing to provide a hardness profile and metallographic examination to assess the hardened layer. Then, the effective or total case depth of the parts and the results are compared with the specification requirements.

    SAE J423 Equipment and Sample Preparation

    Specimen DetailsTechnicians test carburized steels, nitrided steels, carbonitrided steels, cyanided steels, induction-hardened steels, and flame-hardened steel components such as gears, shafts, bearings, camshafts, crankshafts, and transmission parts.
    Specimen PreparationOperators section representative specimens, mount them in resin, grind and polish the test surface, and etch the specimens when metallographic examination is required. They carefully prepare the hardness test surface in order to ensure that the hardened layer will not be modified.
    Specimen DimensionsDepends on the component geometry and the method of measurement. The cross section should show the entire hardened case and be large enough to have enough core material so that the cross section can be measured accurately.

    Testing Procedures and Requirements

    Technicians first select representative specimens from a production batch of case-hardened steel components. The specimens are sectioned through the hardened layer and prepared by mounting, grinding, polishing, and, when required, etching for metallographic examination. Technicians then measure the case depth by the appropriate technique, based on the heat treatment process and engineering specifications, such as microhardness testing, metallographic examination, or chemical analysis. Finally, they measure the effective or total case depth and compare the results with the specification requirements.

    Read more

    Specimen PreparationTechnicians section representative case-hardened steel components and mount, grind, polish, and etch the specimens when metallographic examination is required.
    Measurement MethodOperators determine case depth using the appropriate method, including microhardness testing, metallographic examination, or chemical analysis, depending on the heat treatment process and specification requirements.
    Hardness EvaluationTechnicians determine the effective case depth by measuring the hardness profile from the surface toward the core using a Vickers or Knoop microhardness tester.
    Metallographic ExaminationOperators use a metallographic microscope to examine the hardened layer and measure the total case depth.
    Data Analysis and ReportingTechnicians calculate the effective or total case depth, record hardness values, and compare the results with specification requirements before preparing the final test report.

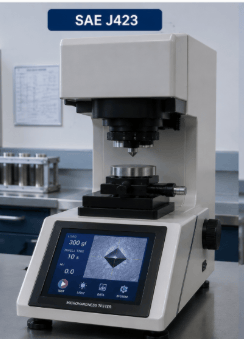

    The image shows a microhardness tester used to measure the effective and total case depth of case-hardened steel components according to SAE J423.
    SAE J423 Microhardness Tester

    Analysis Results and Interpretation

    SAE J423 specifies both effective case depth and total case depth in millimeters (mm) or inches (in), and hardness is typically reported as HV (Vickers Hardness), HK (Knoop Hardness), or HRC (Rockwell Hardness). An appropriate case depth and hardness profile improve wear resistance and fatigue performance when matched to the component design and service requirements. Shallow or non-uniform case depth can be a sign of poor heat treatment and can shorten the service life of a component.

    Read more

    Direct Link to SAE J423

    FAQ

    Why should I examine case depth?
    It ensures that the metal parts have the right balance of a hardened, wear-resistant surface and a tough, ductile inner core.
    SAE J423 is used to determine the thickness of the hardened surface layer on steel and ferrous metal components that have undergone case-hardening treatments, including gears, shafts, bearings, camshafts, crankshafts, axles, sprockets, and other powertrain or industrial machine parts.
