ASTM E384 Standard Test Method for Microindentation Hardness of Materials

Get Certified ASTM E384 Microindentation Hardness Testing

ASTM E384 testing assists manufacturers, metallurgists, engineers, and quality control personnel in assessing localized material hardness. Technicians prepare and polish the test surface, choose the indenter and test force, and make the controlled indentations. The resulting impressions are measured, and a hardness value is determined. The obtained results are used to characterize the materials, evaluate the heat treatment, assess the coating, and study the microstructure.

• Material Type: Metallic materials & other materials suitable for microindentation hardness measurement
• Applications: Analysis of local material hardness.
• Properties Measured: Vickers or Knoop microindentation hardness. The method uses a diamond indenter to apply a specific force to the prepared material surface and measures the resulting indentation.
• Result: Results are reported as Vickers hardness (HV) or Knoop hardness (HK), as applicable.
• Test limitations include surface preparation, spacing between indentations, specimen thickness, applied force, material microstructure, and measurement accuracy.
• Environmental Conditions: In order to get accurate indentation measurements, the equipment must also be stable and the surface and environmental conditions appropriate for testing.
• Applications: Microstructural characterization, coating, thin material, small components, heat treatment evaluation, and localized hardness.

What are the uses of ASTM E384 testing?

ASTM E384 testing helps engineers and metallurgists evaluate hardness at very small The ASTM E384 test is useful for engineers and metallurgists to assess the hardness of very small areas within a material. Technicians can measure hardness in individual microstructural regions, near surfaces, or across thin sections where there is not space for larger indentations. Hardness profiles are used for the analysis of material processing, heat treatment, and microstructural changes. The test helps to:

• Microhardness Evaluation: Measures the hardness of a material in small areas.
• Microstructural Analysis: Tests for hardness variations in microstructural areas.
• Coating Assessment: Measures the hardness of appropriate thin coatings or surface layers.
• Heat-Treatment Evaluation: Studies the changes in hardness produced by heat treatment.
• Hardness Profiling: Tests hardness changes in a material’s section.
• Material Comparison: A comparison of the localized hardness of different materials or regions.
• Quality Control: Assists in checking the consistency of materials and processes.

Which Materials Can Be Tested According to ASTM E384?

ASTM E384 applies to materials that can be prepared with a suitable surface for microindentation testing. Technicians can evaluate small sections, thin materials, surface layers, and localized regions where conventional hardness testing may produce an excessively large indentation. The method is useful for materials with different microstructural phases because technicians can target specific areas for measurement. Analysts should select the appropriate indenter and test force based on the material and test objective. The method applies to:

• Material Type: Suitable metals and other materials capable of supporting a measurable indentation.
• Thin Sections: Materials with small thicknesses that require localized hardness evaluation.
• Small Components: Small material sections and components suitable for microindentation testing.
• Coatings and Surface Layers: Suitable surface layers requiring localized hardness measurement.
• Microstructural Regions: Individual phases or regions within a material that require hardness characterization.

Why is ASTM E384 Testing Important?

Microindentation hardness testing allows technicians to evaluate very small regions. Microindentation hardness testing can test very small areas without needing a large test area. This approach is useful for the study of microstructures, thin sections, coatings, and changes in material properties. ASTM E384 offers a uniform method of creating and measuring small indentations. The resulting hardness values help engineers evaluate material condition, processing effects, microstructural variations, and localized mechanical behavior.

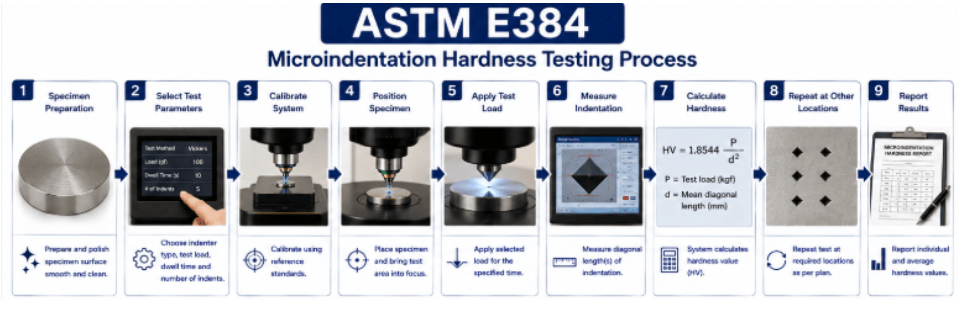

ASTM E384 Testing Process and Data Collection

Technicians prepare the specimen surface and position it securely under the microscope and indenter. They select the appropriate test force and verify the testing system. The technician applies the diamond indenter to the prepared surface and creates the indentation. After completing the indentation, the technician measures the required impression dimensions. Analysts evaluate the measurements and calculate the Vickers or Knoop hardness. They record the test force, hardness scale, indentation measurements, specimen identification, and relevant test conditions.

Common Challenges and Troubleshooting

ASTM E384 results can be influenced by poor surface preparation, a surface that is too rough, too high a test force, too low a support force, too small spacing between indentations, and too poor a surface measurement. Technicians should take special care to polish the test surface, inspect the indenter and instrument, provide proper support for the specimen, and measure the indentation accurately. Where there is significant variation between repeat measurements, the analysts should investigate specimen preparation, position of indentation, test force, condition of the indenter, measurement method, and microstructure of the material.

• The laboratory reports Vickers hardness as HV and Knoop hardness as HK, as applicable to the selected hardness scale.
• The technician records the applied test force in gf or N and the measured indentation dimensions in µm or mm, as applicable.
• The analyst records individual hardness readings and calculates the representative average hardness when multiple indentations are performed.
• The laboratory identifies the test location and relevant microstructural region for each indentation.
• The analyst compares the measured hardness values with applicable material specifications, reference values, or processing requirements to evaluate localized material hardness.

Link to ASTM E384
