ASTM E165 Liquid Penetrant Testing for General Industry

Get Certified ASTM E165 Testing for Reliable Surface Discontinuity Detection

The certification confirms that the liquid penetrant examination performed on a component meets the requirements outlined in the appropriate ASTM E165. ASTM E165 certified testing detects surface-breaking discontinuities before the manufacturer accepts the part for service or shipment. Testing and certification ensure compliance with the ASTM E165 requirements and minimize the potential for surface defects to go undetected and enter critical applications.

• Material type: Nonporous metals, nonporous glazed or fully-densified ceramics, some nonporous plastics and glass.
• Purpose: To detect and locate surface-breaking discontinuities.
• Properties evaluated: Presence, location, and, to some degree, the kind and degree of discontinuity found.
• Testing Method: Technicians clean the surface, apply penetrant, allow dwell time, remove excess penetrant, apply developer, and inspect under appropriate lighting.
• Result: Inspectors observe indications by type, location, and size, and assess them against external specifications of acceptance criteria.
• Test Limitations: The practice does not contain acceptance criteria and is only able to detect surface-breaking discontinuities that open to the surface.
• Use conditions: Surface cleanliness, temperature, dwell time, and inspection lighting significantly affect indication visibility.
• Applications: Weld inspection and casting inspection; examination of aerospace components; in-service inspection and maintenance; general manufacturing quality assurance.

What are the Uses of ASTM E165 Testing?

ASTM E165 testing helps inspectors identify surface discontinuities that may affect the performance of a component in service. Engineers then interpret the results to assess part acceptability and to make repair/reject decisions. This standard-

• Evaluates the existence and distribution of surface discontinuities.
• Artificially exposes deficiencies by using a developer to pull trapped penetrant to the surface.
• Evaluates to some degree the type and intensity of indications of detected responses.
• Helps to review current penetrant examination process for applicability and completeness
• Helps determine process specifications for liquid penetrant testing.
• Helps to arrange facilities and staff related to penetrant testing.
• Helps select the appropriate penetrant technique for the part and service application

What Materials Can Be Tested Under ASTM E165?

ASTM E165 applies to nonporous metals, nonporous glazed or fully densified ceramics, some nonporous plastics, and glass. Common test articles are welds, castings, forgings, machined parts, and in-service parts where surface integrity is important. The practice is implemented on any clean, dry, nonporous surface of any shape and size, and is especially effective on complex geometries that are difficult to reach with other inspection methods.

Why is ASTM E165 Important?

ASTM E165 provides a standardized procedure that yields uniform and comparable penetrant inspection results from one organization to another and one material to another. Manufacturers and inspectors apply this practice to reliably find surface defects, because each penetrant method described in the standard is suitable for certain applications, including critical service items, high part volumes, portability, and localized examination areas.

ASTM E165 Testing Process and Data Collection

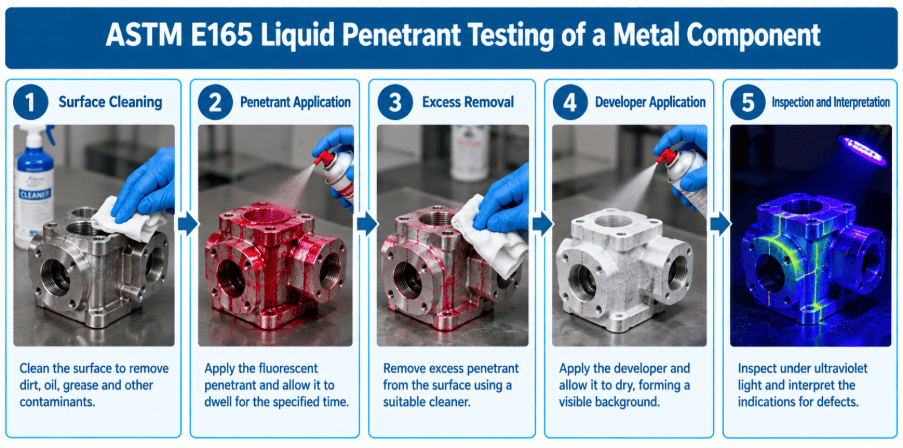

Testing starts after the technician cleans and dries the test surface, removing oil, scale, paint, and other materials that block the penetrant from entering the flaw. The technician then applies a selected visible or fluorescent penetrant and lets the penetrant dwell for a specified amount of time, during which capillary action draws the liquid into any surface-breaking discontinuities. Next, the technician carefully removes excess surface penetrant using water, solvent, or an emulsifier, depending on the penetrant type. The trapped penetrant is drawn back with the developer, and this developer spreads the indication to a larger size than the actual flaw. Lastly, the inspector inspects the surface under suitable lighting conditions and documents the type, location, and size of each indication and compares this data against the acceptance criteria the engineering organization specifies.

Common Challenges and Troubleshooting

The lack of good surface cleanliness can cause false indications, as oil, paint, or scale blocks the penetrant from flowing out of discontinuities below. If the excess penetrant is removed too vigorously, the excess penetrant liquid will be removed before it can be reabsorbed by the developer, and the indication will be removed. If the dwell time is insufficient, penetrant may not completely find its way into the narrow and close discontinuities. In addition, inspectors also see false indications due to surface roughness, part geometry, or penetrant left in threads and crevices. Laboratories solve these problems by performing thorough cleaning, ensuring that dwell times are controlled, removing excess penetrant gently, and educating inspectors to differentiate between relevant and non-relevant indications.

• The laboratory report records the indication type, location, size, and whether it is linear, rounded, or clustered.
• The technician indicates the penetrant method that was used (whether visible or fluorescent dye was used and what process was used to remove the dye).
• The inspector documents the indications seen under the specified lighting conditions, identifies relevant indications, and differentiates them from non-relevant surface artifacts.
• When interpreting penetrant indication results, the engineer considers the surface condition, the part’s geometry, and the dwell time.
• Engineers evaluate the recorded indications against acceptance criteria the cognizant engineering organization specifies, since this practice does not define them.
