ASTM D1621 Method for Compressive Properties of Rigid Cellular Plastics

    What is ASTM D1621?

    ASTM D1621 is a standard test method for measuring the compressive properties of rigid cellular plastics. The method determines how a rigid cellular plastic responds to compressive loading and helps determine compressive strength and related deformation behavior. Engineers and technicians use ASTM D1621 (Method for Compressive Properties of Rigid Cellular Plastics) to characterize materials intended for insulation, packaging, construction, and other applications where resistance to compressive forces is a concern. This testing procedure involves applying a specific load to a specimen that has undergone a specific preparation process and measuring the force and deformation. These results can support material selection, quality control, product development, and comparisons of rigid cellular plastic materials under the conditions of the particular test.

    Read more

    Get Certified ASTM D1621 Testing for Reliable Compressive Properties of Rigid Cellular Plastics

    Compressive forces are frequently encountered when handling, installing, and servicing rigid cellular plastics. Compressive testing helps engineers determine whether a material can handle load demands. ASTM D1621 is a standardized procedure for determining the compression properties of rigid cellular plastics. The results can be used for material qualification, quality control, product development, and comparison of cellular plastic materials.

    What is the Scope of the ASTM D1621 Test Standard?

    ASTM D1621 is the standard test method for the compressive properties of rigid cellular plastics and involves compressing prepared cellular plastic specimens. Measures the reaction of the material during deformation of the specimen. The standard-

    Read more

    • Measures the compression characteristics of rigid cellular plastics.
    • Measures the ability of materials to resist crushing forces.
    • Measures compression stress and compression deformation.
    • Calculates compression strength, if applicable.
    • Applies to rigid cellular plastic specimens.
    • Supports material comparison.
    • Assists in assessing the quality of products.
    • Assists in the development and quality control of materials.

    What are the Uses of ASTM D1621 Testing?

    Laboratories use ASTM D1621 testing to describe the response of rigid cellular plastics to compression forces. Engineers use the results to compare materials and determine whether they are appropriate for compressive-resistance applications. This standard-

    • Measures compressive properties.
    • Tests the ability to withstand compression loads.
    • Assists in comparing rigid cellular plastics.
    • Supports material selection.
    • Assists in assessing insulation materials.
    • Supports product development.
    • Provides information for quality control.
    • Assists in the performance evaluation of materials.

    Which materials can be tested under ASTM D1621?

    ASTM D1621 is for rigid cellular plastics that can be processed into appropriate test specimens. These materials can consist of rigid foams for insulation, structure, packaging, and more. Technicians should determine the material type, density, specimen dimensions, and conditioning requirements before preparing specimens for testing.

    Why is ASTM D1621 Important?

    ASTM D1621 is a standard test for the compressibility of rigid cellular plastics. By repeatedly testing materials under the same loading conditions, laboratories can compare materials. Labs can use the results to select materials based on compression performance and to support quality control for manufactured products and product development.

    ASTM D1621 Equipment and Sample Preparation Guide

    The compression testing machine, according to ASTM D1621, is a device that applies controlled force and measures specimen deformation. The technicians prepare the representative specimens, which have suitable dimensions, and condition them according to the applicable requirements.

    Read more

    Sample and Specimen DetailsRepresentative rigid cellular plastic samples are tested in laboratories following the requirements of the test.
    Specimen PreparationTechnicians prepare specimens and cut to have clean, parallel surfaces, and the cellular structure is not damaged during preparation.
    Specimen DimensionsTechnicians prepare specimens with a minimum area of 25.8 cm2 (4 in.) and a maximum area of 232 cm2 (36 in.).
    InstrumentationThe testing process uses a compression testing machine, a load cell, a displacement measurement system, calipers, micrometers, and appropriate specimen fixtures.

    Testing Procedures and Requirements for ASTM D1621

    ASTM D1621 is a test method that involves compressing a rigid cellular plastic sample and recording the compression force and deformation. Technicians prepare the specimen, set it up properly in the testing machine, and apply the load under controlled conditions. The procedure outlined in ASTM D1621 is as follows-

    Read more

    Specimen PreparationTechnicians prepare and condition rigid cellular plastic specimens as required.
    Specimen MeasurementOperators measure the specimen and ensure the loading surfaces are appropriate for testing.
    Specimen PlacementTechnicians load the specimen between the compression platens and adjust the specimen for proper alignment.
    Compression TestingDuring the test, the testing machine compresses the specimen at a rate of compression determined by the test and records the force and the deformation.
    Result ReportingLaboratories report the compressive properties, specimen dimensions, test conditions, and observations.

    ASTM D1621 Testing Process and Data Collection

    Technicians select representative rigid cellular plastic specimens and verify their dimensions before testing. They then condition the specimens and place them between the compression platens. The operator then applies compressive force at the set rate, and the test machine records the applied force and the specimen’s deformation. The measurements collected provide data used to assess compressive behavior. Lastly, engineers determine the appropriate compressive properties based on the measurements taken. Laboratories report results, along with information about the specimen and test conditions.

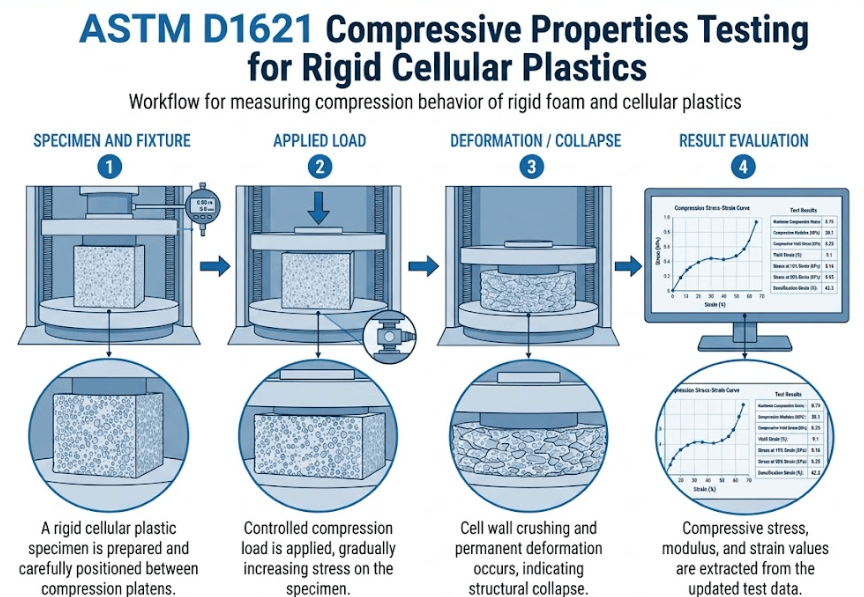

    This image shows a rigid cellular plastic specimen undergoing compression testing between the platens of a universal testing machine according to ASTM D1621.
    ASTM D1621 Compression Testing of Rigid Cellular Plastics

    Common Challenges and Troubleshooting

    Proper specimen preparation, dimensional measurements, alignment, and controlled loading are essential for accurate ASTM D1621 results. Specimen surfaces may not be even, which can lead to nonuniform loading and to affect the measured compressive properties. Technicians should prepare specimens with appropriate parallel surfaces and check dimensions before testing. Reliable results also require proper machine alignment and calibrated load measurement.

    ASTM D1621 Analysis Results and Interpretation

    The report summarizes the compressive behavior of the tested rigid cellular plastic. The measured properties, together with the dimensions of the specimens, the test conditions, and observations, are reported by the laboratories.

    Read more

    • The test results report the material’s compressive properties according to ASTM D1621 rather than providing a broad-based material rating.
    • The test report expresses compressive stress in MPa or psi, applied force in N or lbf, and deformation in mm or in. When applicable, the report also includes compressive strain as a percentage.
    • Engineers interpret the test results based on the material specification and intended application.
    • Technicians prepare the specimens carefully and apply standardized loading to obtain reliable and consistent results.

    Link to ASTM D1621

    FAQ

    Where can I get the astm d1621 tested?
    You can share your astm d1621 testing requirements with MaTestLab. MaTestLab has a vast network of material testing laboratories, spread across the USA and Canada. We support your all material testing needs ranging from specific astm d1621 test to various testing techniques.
    Please contact us for a detailed quote for your astm d1621 testing needs. Cost incurred to carry out different astm d1621 testing methodology depends on the type of raw material; number of samples, coupons, or specimens; test conditions, turn around time etc. Costs of some ASTM testing methods start from $100 and the final value depends upon the factors listed above. Please contact us for the best and latest prices.
    The required number of samples or specimens should comply with the procedure given in the astm d1621 standard. However, the MaTestLab operations team can assist you for your special requirements once you share your testing details with us.
    MaTestLab has a vast testing laboratory network, hence we bring you the best testing facilities in a cost-effective way. We offer considerable discounts (15-20%) to our returning customers based on test volume and frequency.
    The turnaround time for astm d1621 test methodology depends upon the test procedure mentioned in the standard test document. However, we at MaTestLab understand your research requirements and hence try to get your test completed within the least possible time.
