ASTM A598 Magnetic Properties of Magnetic Amplifier Cores
What is ASTM A598?
ASTM A598 is a standard test method used for determining the magnetic properties of the core of a magnetic amplifier under controlled laboratory conditions. The method determines the efficiency of a magnetic core when subjected to a magnetic field and whether this core can satisfy the performance requirements for electrical applications. The applications of magnetic amplifier cores are power electronics, industrial control systems, electrical instrumentation, transformers, reactors, aerospace, and automation systems. ASTM A598 provides manufacturers and engineers with reliable magnetic property data for quality control, product development, material comparison, and performance verification.
Get Certified ASTM A598 Testing for Reliable Magnetic Core Performance
Efficient operation of electrical control systems requires magnetic amplifier cores to have stable and repeatable magnetic properties. ASTM A598 testing is used to ensure that the core has the required magnetic performance before being mated to critical equipment. Certified testing provides greater product reliability, enables quality assurance programs, and helps meet customer and industry requirements.
What is the Scope of ASTM A598 Testing?
ASTM A598 covers test methods applicable to magnetic amplifier cores for electrical and electronic equipment to determine their magnetic properties. The test gives magnetic performance data that can be confidently used for product development, quality assurance, research, and process control during manufacturing. The ASTM A598 standard
Tests the magnetic characteristics of magnetic amplifier cores.Â
Measures the magnetic response of magnetic amplifier cores under controlled magnetic field and excitation conditions.
Assesses the magnetic performance of soft magnetic core materials and supports material selection for electrical and electronic applications.
Gives standardized magnetic performance data for research and product development.Â
Provides standardized magnetic property data that may be used to demonstrate compliance with customer and industry requirements.
ASTM A598 Technical Specifications
Applicable Materials
Magnetic amplifier cores, laminated silicon steel cores, ferrite cores, Ni-Fe, Co-Fe, and other soft magnetic core materials.
Specimen Configuration
Toroidal or core-form magnetic specimens with primary and secondary windings.
Testing Instrumentation
Magnetic core tester, B-H analyzer, fluxmeter, Gaussmeter, precision ammeter, voltmeter, oscilloscope, and computer-based data acquisition system.
Measured Properties
Initial permeability, magnetic flux density, maximum permeability, remanence, hysteresis characteristics, and saturation behavior.
Magnetization Type
Controlled direct-current (DC) or alternating-current (AC) magnetic excitation, depending on the testing procedure
Output Units
Magnetic flux density (T), magnetic field strength (A/m), coercive force (A/m), permeability (μ or μr), and magnetic induction values are output units.
What is the Use of ASTM A598 Testing?
ASTM A598 testing provides standardized magnetic performance data for evaluating magnetic amplifier cores used in electrical and electronic systems. Manufacturers can use the results to enhance product quality, optimize magnetic efficiency, and certify materials for use in challenging industrial applications. The ASTM A598 Testing
Tests the magnetic properties of magnetic amplifier cores.Â
Supports quality control during the manufacture of magnetic amplifier cores.
Supports electrical engineers when choosing materials for electrical equipment.Â
Optimizes the performance of transformers, reactors, and power control systems.Â
Supports research and development of new and improved soft magnetic materials.
Validates against customer requirements and industry norms.Â
What Are Magnetic Amplifier Cores?
Magnetic amplifier cores are soft-magnetic components that regulate electrical power through magnetic saturation. They are applied in power control circuits, industrial automation, aircraft and space electrical instrumentation, and special transformer products where stable magnetic properties are important.
Why Is Magnetic Property Testing Important?
The performance, stability, and efficiency of magnetic amplifier cores are directly related to their magnetic properties. ASTM A598 testing guarantees that all cores meet the necessary permeability, saturation, and magnetic response properties that are essential for proper functioning in electrical equipment.
Which Properties Does ASTM A598 Measure?
ASTM A598 tests valuable magnetic properties such as permeability, magnetic flux density, coercive force, remanence, saturation, and hysteresis behavior. The characteristics are used to determine the applicability of the magnetic cores to electrical applications.
Common Challenges and Troubleshooting
Systemic errors can occur when the coils are improperly wound, the instruments are not calibrated correctly, there is electrical noise, the specimen is damaged, or the correct setting for the magnetizer is not used. Good specimen preparation and calibrated instruments, coupled with controlled laboratory conditions, enhance the repeatability and reliability of the measurements.
ASTM A598 Testing Process and Data Collection
The technician forms and installs the magnetic core, places the excitation and sensing windings, and places the specimen into the magnetic core testing system. The specimen is subjected to a controlled magnetic excitation, and the magnetic response is continually measured. Data is recorded and analyzed to determine the desired magnetic properties, and a detailed test report is generated in the lab.
ASTM A598 Equipment and Sample Preparation Guide
Proper specimen preparation and instrument calibration are essential for obtaining accurate magnetic test results. Before measurements, carefully prepared magnetic cores are fitted, windings are installed, and the measurement equipment is calibrated. This guarantees accurate and repeatable test data.
Representative magnetic amplifier cores may be manufactured from laminated silicon steel, ferrite, nickel-iron alloys, cobalt-iron alloys, or other soft magnetic materials used in electrical and electronic equipment.
Specimen Preparation
Technicians inspect, clean, and prepare toroidal or core-shaped specimens. Primary (magnetizing) and secondary (search) windings are installed according to ASTM A598 requirements before testing.
Specimen Configuration
Toroidal (ring-shaped) or other specified magnetic core geometries prepared with accurately wound excitation and sensing coils.
Instrumentation
Magnetic Core Tester, B-H Analyzer, Fluxmeter, Gaussmeter, Regulated DC/AC Power Supply, Precision Ammeter, Voltmeter, Oscilloscope (when required), Coil Winding Fixture, and Computerized Data Acquisition System.
Testing Procedures and Requirements Guide
ASTM A598 provides guidelines for conducting tests of the magnetic characteristics of magnetic amplifier cores in a controlled laboratory environment. The core is prepared, attached to calibrated magnetic testing equipment, and subjected to controlled magnetization cycles to assess its magnetic characteristics.
Other referenced standards include ASTM A34/A34M, ASTM A340, ASTM A596, and ASTM A773, where applicable.
Core Preparation
Technicians inspect and clean the magnetic amplifier core while verifying its dimensions and physical condition before testing.
Instrument Setup
The magnetic core is connected to a magnetic core tester, an excitation winding, a sensing winding, a regulated power supply, and calibrated measuring instruments.
Controlled Magnetization
The system provides the direct-current (DC) or alternating-current (AC) excitation when required by the test procedure.
Magnetic Property Measurement
Instruments measure the permeability, magnetic flux density, coercive force, remanence, and saturation characteristics.
Data Analysis
Engineers compare the measured magnetic properties with specification limits and customer requirements.
Reporting
The laboratory documents the testing conditions, measured values, calibration records, and compliance results in the final report. Measurements are obtained over the specified magnetization range to generate the required magnetic characteristic curves for evaluation.

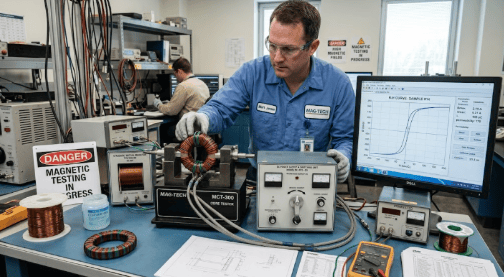

ASTM A598 Magnetic Core Tester
Analysis Results and Interpretation
Magnetic flux density is typically reported in tesla (T).
Magnetic field strength and coercive force are typically reported in amperes per meter (A/m).
Permeability in terms of relative permeability (μr) or absolute permeability (μ).Â
The higher the permeability and the lower the coercive force, the better the magnetic properties and the higher the efficiency of the magnetic amplifier application.
Measured magnetic properties are compared with applicable material specifications or customer requirements to determine the suitability of the magnetic amplifier core for its intended application.
You can share your astm a598 testing requirements with MaTestLab. MaTestLab has a vast network of material testing laboratories, spread across the USA and Canada. We support your all material testing needs ranging from specific astm a598 test to various testing techniques.
How much do I need to pay for the astm a598 test?
Please contact us for a detailed quote for your astm a598 testing needs. Cost incurred to carry out different astm a598 testing methodology depends on the type of raw material; number of samples, coupons, or specimens; test conditions, turn around time etc. Costs of some ASTM testing methods start from $100 and the final value depends upon the factors listed above. Please contact us for the best and latest prices.
How many samples are required for astm a598?
The required number of samples or specimens should comply with the procedure given in the astm a598 standard. However, the MaTestLab operations team can assist you for your special requirements once you share your testing details with us.
How much discount can I get on the astm a598 test?
MaTestLab has a vast testing laboratory network, hence we bring you the best testing facilities in a cost-effective way. We offer considerable discounts (15-20%) to our returning customers based on test volume and frequency.
How many days will it take to complete the astm a598 test?
The turnaround time for astm a598 test methodology depends upon the test procedure mentioned in the standard test document. However, we at MaTestLab understand your research requirements and hence try to get your test completed within the least possible time.
