ASTM A309 Test Method for Weight and Composition of Coating on Terne Sheet by the Triple-Spot Test

    What is ASTM A309?

    ASTM A309 is the standard test method for evaluating the weight and composition of coating on terne sheet by the triple-spot test. It outlines a standard laboratory method of determining the average coating weight and coating composition of terne-coated steel sheet by chemical stripping. The method requires testing three representative specimens from the coated sheet. The coating is stripped with approved chemical strippers, and its weight is determined by measuring the weight loss. If necessary, the test also identifies the tin and lead content of the terne coating, supporting manufacturers to check product specifications.

    Read more

    Get Certified ASTM A309 Triple-Spot Coating Testing

    The durability and corrosion resistance of terne-coated steel rely on the coating’s quality and uniformity. ASTM A309 (Test Method for Weight and Composition of Coating on Terne Sheet by the Triple-Spot Test) provides a reliable method for determining coating weight and composition, enabling manufacturers to assess production quality, verify specifications, and maintain consistent coating performance.

    What Is The Scope of the ASTM A309 Test?

    ASTM A309 is a standard laboratory procedure for determining the weight and composition of terne coatings on steel sheet. The Triple-Spot Test uses chemical stripping procedures to accurately measure coating mass and evaluate coating composition, helping manufacturers maintain product quality and verify compliance with material specifications. The ASTM A309 test standard

    Read more

    • Determines the weight of terne coatings on steel sheets.
    • Determines the tin and lead composition of terne coatings.
    • Uses the Triple-Spot Test with three representative specimens.
    • Employs approved chemical stripping procedures.
    • Supports quality control and product acceptance.
    • Checks coatings against specifications.
    • Applies to terne-coated steel products.

    What is the Use of ASTM A309 Testing?

    ASTM A309 testing determines the weight and composition of terne coatings on steel sheet using the Triple-Spot Test. The method helps manufacturers verify coating quality, ensure compliance with product specifications, and evaluate the uniformity of protective coatings for corrosion-resistant steel products, and it also

    • Determines the weight of terne coatings on steel sheets.
    • Measures the tin and lead composition of terne coatings.
    • Verifies coating uniformity and consistency.
    • Supports product qualification and quality assurance.
    • Verifies adherence to ASTM and customer specifications.
    • Compares coating performance between production batches.
    • Assists manufacturers in process control and inspection.

    What Materials Can Be Tested Under ASTM A309?

    ASTM A309 applies to terne-coated steel sheets, which are steel products coated with lead-tin (terne) alloys for corrosion protection in industrial applications.

    Why is ASTM A309 Important?

    ASTM A309 is a standard test method for determining the weight and composition of terne coatings. It aids in coating quality control, specification conformity, and longevity and corrosion resistance of coated steel products.

    Common Challenges and Troubleshooting

    Common issues include failures in coating removal, overattack on the substrate metal, contaminated specimens, incorrect reagent preparation, weighing errors and inconsistent stripping timing. With proper specimen handling, calibrated analytical balances, fresh stripping solutions, and by following the ASTM A309 procedures, reliable and repeatable results are achieved.

    ASTM A309 Testing Process and Data Collection

    Testing begins with the selection of three representative samples of the terne-coated steel sheet. Each specimen is cleaned and precisely weighed prior to the removal of the coating, which is accomplished by one of the approved chemical stripping procedures outlined in ASTM A309. The specimens are stripped, washed, dried, and reweighed to calculate the coating weight. If necessary, the coating composition is also tested. Laboratories report the initial and final specimen weights, specimen area, stripping method, coating weight, and coating composition for comparison with the applicable specification requirements.

    ASTM A309 Equipment and Sample Preparation Guide

    Accurate coating weight and composition measurements require proper specimen preparation and careful chemical stripping.

    Read more

    Sample and Specimen DetailsTechnicians cut three representative specimens from the terne-coated steel sheet for coating weight and composition testing.
    Specimen PreparationTechnicians clean the specimens to remove dirt, oil, and contaminants before testing. Technicians weigh the specimens and chemically strip them according to the ASTM A309 procedure.
    Specimen DimensionsTechnicians prepare the three test specimens according to ASTM A309 requirements to provide adequate surface area for accurate coating weight and composition determinations.
    Instruments and Equipments Analytical Balance, Chemical Stripping Containers, Sulfuric Acid Solution, Hydrochloric Acid-Antimony Trichloride Solution, Hydrobromic Acid-Bromine Solution, Beakers, Tongs, Drying Equipment, and Personal Protective Equipment (PPE).

    Testing Procedures and Requirements for ASTM A309

    ASTM A309 provides a standard laboratory method for determining the weight and composition of terne coatings on steel sheet using the Triple-Spot Test. The method requires three representative specimens to be chemically stripped using one of the approved procedures before calculating coating weight and, where applicable, coating composition. After chemical stripping, the specimens are thoroughly rinsed, dried, and reweighed before calculating the coating weight. The coating weight is calculated as the difference between the initial and final specimen weights, divided by the specimen surface area.

    Read more

    Other referenced ASTM documents include A308, E50, E57, and E173.

    Sulfuric Acid StrippingRemove the terne coating using a sulfuric acid solution. Use this procedure to determine the coating weight and approximate the tin and lead content of the terne coating.
    Hydrochloric Acid – Antimony Trichloride StrippingStrip the coating using a hydrochloric acid solution containing antimony trichloride. This procedure minimizes attack on the steel substrate and is primarily used for accurate determination of coating weight.
    Hydrobromic Acid – Bromine StrippingTechnicians use a hydrobromic acid-bromine solution to remove the coating; use this process when accurate estimation of the tin content in the terne coating is required.
    Triple-Spot EvaluationTechnicians evaluate each representative specimen separately and calculate the average coating weight and, when applicable. They determine the coating composition before comparing the results with the specification requirements.

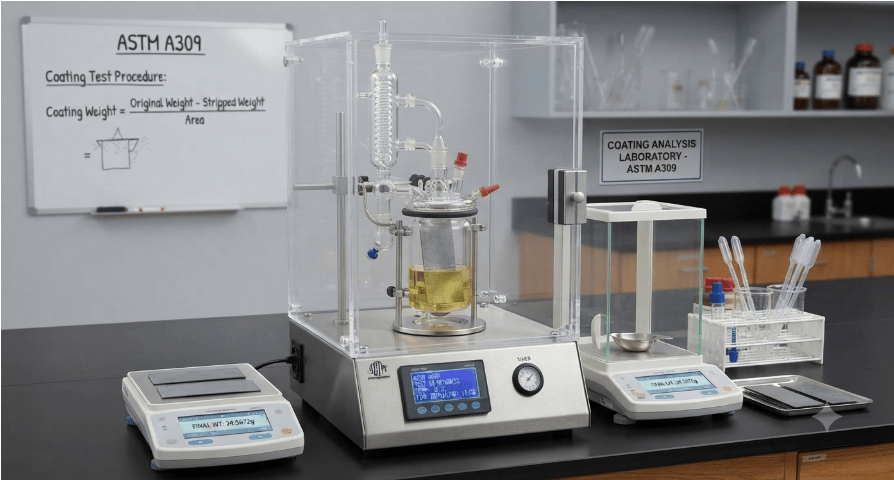

    This figure shows an analytical balance used for accurate weighing of terne-coated sheet specimens during coating weight and composition testing according to ASTM A309.
    ASTM A309 Analytical Balance

    Analysis Results and Interpretation

    • ASTM A309 determines the weight and composition of terne coatings on steel sheets.
    • Results are typically reported as coating weight (g/m², oz/ft², or lb/base box) together with the tin and lead composition (%) of the coating.
    • These values evaluate coating uniformity, verify product conformity, and confirm compliance with the applicable material specifications.
    • Coating weight values are compared with the limits specified in the applicable ASTM product specification to verify whether the terne-coated steel sheet meets the required coating designation.

    Link to ASTM A309

    Read more

    FAQ

    Where can I get the astm a309 tested?
    You can share your astm a309 testing requirements with MaTestLab. MaTestLab has a vast network of material testing laboratories, spread across the USA and Canada. We support your all material testing needs ranging from specific astm a309 test to various testing techniques.
    Please contact us for a detailed quote for your astm a309 testing needs. Cost incurred to carry out different astm a309 testing methodology depends on the type of raw material; number of samples, coupons, or specimens; test conditions, turn around time etc. Costs of some ASTM testing methods start from $100 and the final value depends upon the factors listed above. Please contact us for the best and latest prices.
    The required number of samples or specimens should comply with the procedure given in the astm a309 standard. However, the MaTestLab operations team can assist you for your special requirements once you share your testing details with us.
    MaTestLab has a vast testing laboratory network, hence we bring you the best testing facilities in a cost-effective way. We offer considerable discounts (15-20%) to our returning customers based on test volume and frequency.
    The turnaround time for astm a309 test methodology depends upon the test procedure mentioned in the standard test document. However, we at MaTestLab understand your research requirements and hence try to get your test completed within the least possible time.
