ASTM D4708 Standard Practice for Preparation of Uniform Free Films of Organic Coatings

Get Certified ASTM D4708 Testing for Reliable Organic Coating Evaluation

A coating substrate can influence the measurement of certain physical properties. ASTM D4708 provides a standardized approach for preparing free films so technicians can evaluate the coating material separately from its supporting substrate. The resulting films support physical and mechanical evaluations such as tensile and elongation, moisture vapor permeability, microbiological activity resistance, and other coating property tests.

• Covers the preparation of free films from organic coatings for physical-property evaluation.
• Applies to coating films that require removal from a substrate before property testing.
• Produces free-standing films by applying a uniform wet coating to a release substrate.
• Uses drying or baking to form the applied coating film.
• Prepares the dried film in an appropriate specimen size for the intended physical-property test.
• Provides release-substrate options that allow technicians to remove the coating film without altering its properties.
• Supports subsequent evaluation of properties such as tensile strength and elongation, moisture vapor permeability, and resistance to microbiological activity.
• Adopts SI units as the standard reporting basis.

What are the Uses of ASTM D4708 Testing?

ASTM D4708 supports technicians who need free coating films for subsequent physical and mechanical evaluation. The practice becomes useful when the substrate could interfere with the determination of a coating property. This standard-

• Supports tensile and elongation evaluation of organic coating films.
• Enables moisture vapor permeability evaluation.
• Assists microbiological activity resistance evaluation.
• Helps laboratories isolate coating properties from substrate effects.
• Provides uniform free-film specimens for comparative coating evaluations.
• Extends to other physical-property evaluations that require a substrate-free coating film.

Which Materials Can Be Tested Under ASTM D4708?

ASTM D4708 applies to organic coating materials that technicians can form into free films for subsequent physical-property evaluation. The practice does not limit the scope to a particular resin, paint, varnish, or lacquer formulation. The technician selects a suitable release substrate and film-preparation approach according to the coating and intended evaluation.

Why is ASTM D4708 Important?

ASTM D4708 helps technicians prepare consistent free films when the substrate could interfere with physical property measurements. Uniform film preparation gives subsequent testing a controlled specimen and reduces the influence of substrate-related effects on the evaluation.

ASTM D4708 Testing Process and Data Collection

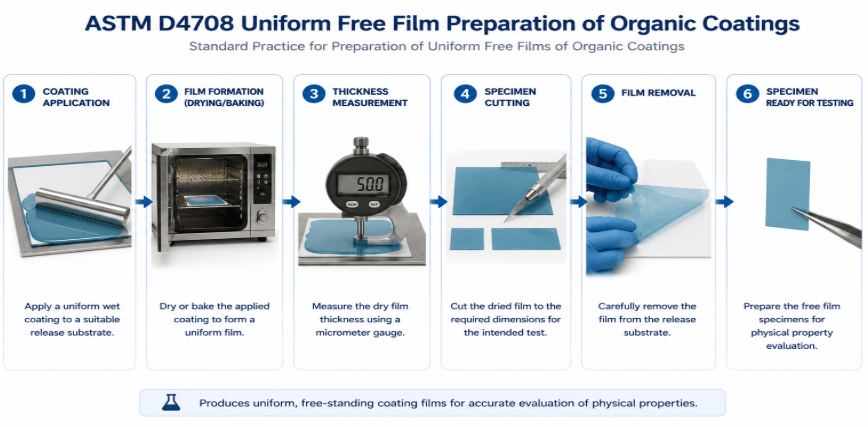

The technician applies the organic coating at a consistent thickness after choosing an appropriate release substrate. The technician slices the film into specimens suitable for the planned physical-property evaluation after measuring the film’s thickness after drying or baking. After removing the free film from the substrate, the technician notes the pertinent preparation data for further testing.

Common Challenges and Troubleshooting

To coat the specimen uniformly, apply the coating evenly, use a suitable release substrate, dry or bake the specimen in a controlled manner, and cut the specimen carefully. If the quality of specimens is not consistent and/or they have imperfections or have reacted with the substrate or been damaged on removal, the quality of the specimens for further testing will be reduced. In ASTM D4708, the film is applied in a uniform manner, with appropriate release substrates; thickness is measured for the film, and appropriate preparation of the specimens is discussed.

• Records the film-preparation conditions and relevant specimen information.
• Measures the dry-film thickness using the applicable thickness-measurement procedure.
• Provides free-film specimens for subsequent tensile, permeability, microbiological, or other physical-property evaluations.
• Allows analysts to interpret the results generated by the applicable downstream test method rather than assigning a performance value under ASTM D4708 itself.
