ASTM D3296 Standard Specification for FEP-Fluorocarbon Tube

    What is ASTM D3296?

    ASTM D3296 describes a standard specification for FEP fluorocarbon tube produced by extruding resins made from a copolymer of tetrafluoroethylene and hexafluoropropylene. FEP is a high-performance fluoropolymer that is highly resistant to chemicals, non-stick, transparent to UV and visible light, and can withstand high temperatures up to 204 °C (400 °F). The tubing is designed for electrical, mechanical, chemical, and medical uses. This specification applies to virgin material, not recycled material. The standard classifies FEP-fluorocarbon tubing into three types based on size schedules. Type I refers to tubing of sizes from the American wire gauge system, Type II to fractional-inch sizes, and Type III to other sizes. The tubing is then further graded as Class A, Class C, Class D, and Class E to indicate wall thickness.

    Read more

    Get Certified ASTM D3296 Testing for Reliable FEP Tubing Performance

    ASTM D3296 testing assesses FEP-fluorocarbon tubing for dimensional, physical, mechanical, electrical, and thermal properties. The specification includes requirements for inside diameter, wall thickness, specific gravity, tensile strength, elongation, dielectric breakdown voltage, dimensional stability, and heat resistance. Testing gives the manufacturers measured data to evaluate the tubing to the applicable requirements.

    What is the Scope of ASTM D3296?

    ASTM D3296 specifies the properties of fluorocarbon tubing (FEP) produced from extrusion resin polymerized from the copolymer of tetrafluoroethylene and hexafluoropropylene. The ASTM D3296 standard-

    Read more

    • Covers the tubing used for electrical, mechanical, chemical, and medical applications.
    • Applies to new material; does not process recycled materials.
    • Identifies tubing by size schedules as Type I, Type II, and Type III.
    • Distinguishes between Classes A, C, D, and E of tubing based on the thickness of the wall.
    • Measures the inside diameter and wall thickness.
    • Determines specific gravity.
    • Compares tensile strength and elongation.
    • Establishes a dielectric breakdown voltage.
    • Tests dimensional stability and heat resistance.

    What are the Uses of ASTM D3296 Testing?

    ASTM D3296 testing helps determine the dimensional, physical, mechanical, electrical, and thermal properties of FEP-fluorocarbon tubing. The standard specifies tubing uses in electrical, mechanical, chemical, and medical applications. This standard-

    • Measures the inside diameter and wall thickness.
    • Determines specific gravity, tensile strength, and elongation.
    • Measures the breakdown voltage of a dielectric.
    • Evaluates dimensional stability.
    • Assesses heat resistance.
    • Supports product quality evaluation.
    • Helps assess compliance with specified requirements.

    Which materials can be tested under ASTM D3296?

    The ASTM D3296 standard applies to FEP-fluorocarbon tubing produced by extruding resin prepared from a copolymer of tetrafluoroethylene and hexafluoropropylene. The specification applies to virgin material and does not cover recycled material.

    Why is ASTM D3296 Important?

    ASTM D3296 establishes a standard specification for FEP-fluorocarbon tube and defines its dimensional, physical, mechanical, electrical, and thermal requirements. It also includes a tubing size schedule and wall-thickness classification system. These requirements provide laboratories and manufacturers a uniform standard for evaluating FEP-fluorocarbon tubing and comparing results with the applicable requirements.

    ASTM D3296 Equipment and Sample Preparation Guide

    Laboratories use appropriate equipment according to the property being evaluated. Sample preparation and instrumentation vary by test procedure and tubing size.

    Read more

    Sample and Specimen DetailsTechnicians take representative samples from FEP-fluorocarbon tubes. The material must be made from virgin FEP resin.
    Specimen PreparationTechnicians prepare test specimens from the tubing, ensuring they meet the standard’s dimensional requirements.
    Specimen DimensionsASTM D3296 dimensions cover American Wire Gauge (AWG) sizes and fractional inch diameters. Each size is split into classes ranging from lightweight to heavy wall thickness.
    InstrumentationThe test uses equipment such as a tensile testing machine, dielectric strength tester, density measurement equipment, dimensional measurement tools, and thermal analysis equipment.

    Testing Procedures and Requirements for ASTM D3296

    ASTM D3296 determines FEP-fluorocarbon tubing through dimensional, physical, mechanical, electrical, and thermal measurements. Technicians prepare the tubing specimens, conduct the required measurements, and record the property data. The ASTM D3296 test methods comprise the following test procedure-

    Read more

    Specimen Preparation Technicians prepare test specimens from the FEP-fluorocarbon tube, ensuring they meet the standard’s dimensional requirements.
    Dimensional Measurement Technicians measure the tubing’s inside diameter and wall thickness.
    Specific Gravity Determination Technicians determine the material’s density to confirm proper composition.
    Physical Testing Technicians determine specific gravity, tensile strength, and elongation to evaluate the material’s physical properties.
    Electrical and Thermal Testing Technicians assess insulating properties and resistance to electrical breakdown and evaluate the material’s ability to withstand elevated temperatures.
    Result Reporting Laboratories report test results in SI units, as required by the standard, and compare them with the standard’s requirements to determine material suitability.

    ASTM D3296 Testing Process and Data Collection

    Technicians choose a representative FEP-fluorocarbon tube and decide which properties to assess. The operator prepares test specimens to standard dimensions. Technicians test inside diameter, wall thickness, specific gravity, tensile strength, elongation, dielectric breakdown voltage, dimensional stability, and heat resistance according to standard methods. Analysts record all applicable data and compare with ASTM D3296 requirements to evaluate conformity.

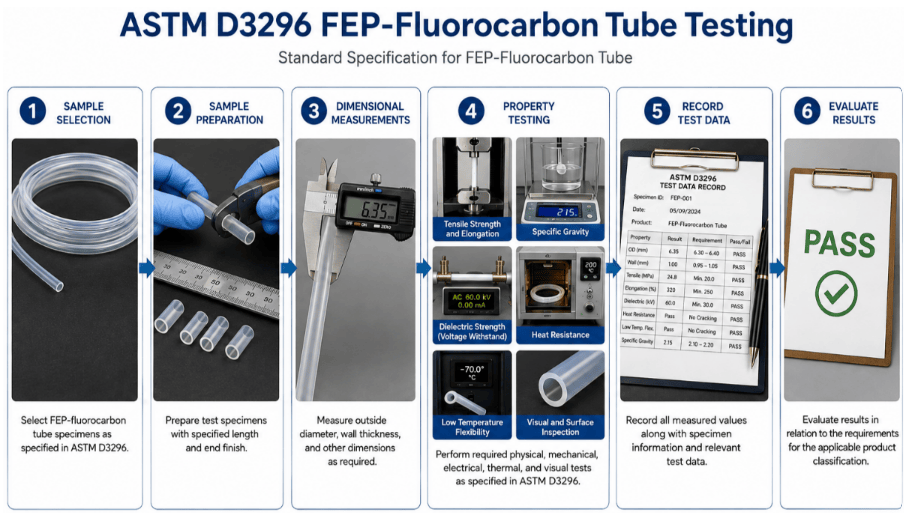

    The image shows FEP tubing specimens being prepared and evaluated in a laboratory for dimensional, mechanical, electrical, and thermal properties according to ASTM D3296.
    ASTM D3296 FEP Resin Tube Testing

    Common Challenges and Troubleshooting

    Accurate results require proper specimen preparation, suitable test procedures, and accurate measurement equipment. Results may differ because of variations in tubing dimensions, wall thickness, specimen condition, equipment setup, and measurement technique. Technicians should identify the tubing type and applicable class before testing, verify the equipment, and follow the appropriate procedure for each required property. Careful dimensional measurement and consistent specimen preparation help laboratories obtain reliable results for evaluating FEP tubing.

    ASTM D3296 Analysis Results and Interpretation

    The report summarizes the performance of the tested FEP tubing for all the relevant dimensional, physical, mechanical, electrical, and thermal properties. It presents the measured values for the selected tests, along with the units of measure and specimen information.

    Read more

    • ASTM D3296 produces property-specific results.
    • Laboratories report measurements for applicable properties, including inside diameter, wall thickness, specific gravity, tensile strength, elongation, dielectric breakdown voltage, dimensional stability, and heat resistance.
    • Results are interpreted based on the tubing type, size, and wall-thickness class.
    • Laboratories can ensure reliable results through consistent specimen preparation, appropriate equipment, and controlled test conditions.

    Link to ASTM D3296

    FAQ

    Where can I get the astm d3296 tested?
    You can share your astm d3296 testing requirements with MaTestLab. MaTestLab has a vast network of material testing laboratories, spread across the USA and Canada. We support your all material testing needs ranging from specific astm d3296 test to various testing techniques.
    Please contact us for a detailed quote for your astm d3296 testing needs. Cost incurred to carry out different astm d3296 testing methodology depends on the type of raw material; number of samples, coupons, or specimens; test conditions, turn around time etc. Costs of some ASTM testing methods start from $100 and the final value depends upon the factors listed above. Please contact us for the best and latest prices.
    The required number of samples or specimens should comply with the procedure given in the astm d3296 standard. However, the MaTestLab operations team can assist you for your special requirements once you share your testing details with us.
    MaTestLab has a vast testing laboratory network, hence we bring you the best testing facilities in a cost-effective way. We offer considerable discounts (15-20%) to our returning customers based on test volume and frequency.
    The turnaround time for astm d3296 test methodology depends upon the test procedure mentioned in the standard test document. However, we at MaTestLab understand your research requirements and hence try to get your test completed within the least possible time.
