ASTM D2734 Standard Test Methods for Void Content of Reinforced Plastics

Get Certified ASTM D2734 Testing for Reliable Void Content Measurement

During composite processing, voids may occur and can decrease the mechanical and physical properties of reinforced plastics. Void content indicates processing problems and allows engineers to compare composite quality. There are standard calculation methods in ASTM D2734 for determining the void content. The results are used for manufacturing control of composites, development of new materials, process optimization, and quality evaluation.

• Measures the void content of reinforced plastics.
• Uses density and constituent-content measurements.
• Provides three ways of calculating void content.
• Applies to glass, carbon, and other reinforced plastic systems.
• Assists in the detection of porosity and voids associated with the processing.
• Enables composite quality control and material comparison.
• Reports the content as a percentage (%).

What are the Uses of ASTM D2734 Testing?

ASTM D2734 testing is useful for engineers and technicians to determine the void volume in reinforced plastic composites. The results allow operators to assess if a consistent composite structure is produced by the manufacturing processes.  The ASTM D2734 standard-

• Calculates the composite void content.
• Assists in the assessment of the quality of the manufactured product.
• Supports process optimization.
• Assists in material comparison.
• Assists in determining excessive porosity.
• Assists in the creation of composites and quality control.
• Informs on the consistency of the material within the product.

Which materials can be tested under ASTM D2734?

ASTM D2734 is applicable to reinforced plastics consisting of resin and reinforcing materials that are capable of being evaluated by the procedures specified in this test method. The standard applies to reinforced systems, including glass and carbon reinforcement. The technician should choose the method based on the material composition and the information available on the percentage of constituents. Analysts should also consider whether the resin or reinforcement can survive the chosen procedure without introducing errors in the void-content calculation.

Why is ASTM D2734 Important?

ASTM D2734 is a standard method for the measurement of void content in reinforced plastics. Excessive voids may be a sign of poor consolidation, trapped air, poor resin distribution, or other processing issues. Results can be used to evaluate the quality of the composite and to detect differences among specimens or production runs. Hence, void-content measurements can be used to help control the process and enhance confidence in the performance of reinforced plastic.

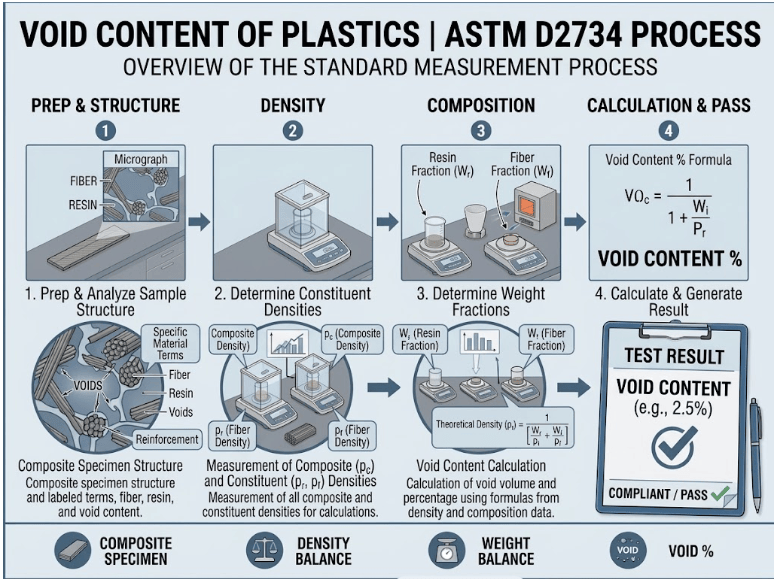

ASTM D2734 Testing Process and Data Collection

Technicians first prepare representative specimens and determine their mass and density. The operators then obtain information about the resin and reinforcement for the selected calculation method. Then, the analysts calculate the difference associated with void space by determining the theoretical density or applicable constituent values. The density measurement, the ignition loss, or resin content after digestion may be used in the selected procedure. Lastly, the calculations are checked by the engineers, and the void content is reported as %. The report should contain information about the specimen and material and should specify the test method used.

Common Challenges and Troubleshooting

It is essential to have representative specimens, accurate mass measurements, reliable density data, and correct constituent information to get accurate ASTM D2734 results. Calculated void content may be influenced by surface contamination, trapped moisture, incomplete constituent determination, or nonrepresentative specimens. Care should be taken by technicians to prepare specimens and to check measurement equipment before testing. Material content and material densities should also be checked by the analysts since errors in the content or densities of the materials may have a direct impact on the outcome of the calculation.

• The void content is reported in ASTM D2734 as %.
• The lower the value of void content, the fewer the internal voids in the composite tested.
• The higher the value, the more porous the product may be, or voids may have been formed during processing.
• Results are dependent on the density of the specimens and the measurements of constituent content.
• The result may depend on the method of calculation used.
• Representative specimens can provide more meaningful information about composite quality.
• Variations in specimens may suggest variations in manufacture or consolidation.
• Results should be interpreted on the basis of the material, manufacturing process, and acceptance requirements.
