ASTM C297 Flatwise Tensile Strength of Sandwich Constructions

    What is ASTM C297?

    ASTM C297 is a standard test method for measuring flatwise tensile strength of sandwich constructions of two relatively thin and stiff face sheets with a relatively thin light core material. This test applies a tensile load perpendicular to the faces of a sandwich specimen until failure occurs. Technicians bond loading fixtures to opposite faces of the specimen and place the assembly in a universal testing machine. They then apply the load at a controlled rate and record the maximum force reached before failure. ASTM C297 (Standard Test Method for Flatwise Tensile Strength of Sandwich Constructions) applies to a variety of materials used in sandwich construction, including aluminum, steel, composites, plastics, foams, honeycomb cores, and balsa wood. The test method provides useful data to assess adhesive-bond quality, core strength, manufacturing repeatability, and structural integrity. The results are generally applied to material selection, quality assurance, product certification, structural design, research and development, etc.

    Read more

    Get Certified ASTM C297 Testing for Reliable Sandwich Construction Performance

    ASTM C297 testing helps manufacturers and laboratories evaluate the tensile strength of sandwich constructions perpendicular to their faces. Laboratory testing checks the flatwise tensile strength, bonding durability, and structural capabilities of sandwich panels before they are approved for production or structural use. ASTM C297 certification helps manufacturers meet engineering specifications and quality assurance requirements, supporting product quality, manufacturing consistency, structural reliability, and customer confidence.

    What is the Scope of ASTM C297 Test Standard?

    ASTM C297 is a standard method for measuring the flatwise tensile strength of sandwich structures for structural applications. The standard assesses tensile bond strength between the face sheet and core materials to ensure reliable structural performance. The ASTM C297 test standard:

    Read more

    • Covers sandwich constructions with light and rigid face sheets.
    • Measures the flatwise tensile strength under controlled laboratory conditions.
    • For use on metallic, polymeric, and composite sandwich panels.
    • Conducts material qualification, product development, and quality assurance.
    • Assesses the integrity of the adhesive bond and the core itself.
    • Offers uniform procedures for structural testing of sandwich constructions.

    What are the Uses of ASTM C297 Testing?

    The ASTM C297 test evaluates bond integrity and flatwise tensile strength of sandwich constructions for lightweight structural applications and can be used by manufacturers, engineers, designers, and testing laboratories. The results aid in quality control, product qualification, structural design, and material selection.

    • Aerospace manufacturers can evaluate sandwich constructions used in lightweight structural applications.
    • Automotive manufacturers can compare sandwich materials used for lightweight components.
    • Marine manufacturers can evaluate sandwich constructions used in structural panels.
    • Construction manufacturers can assess sandwich panel materials and bonded components.
    • Research laboratories can study the tensile behavior of sandwich cores and interfaces.
    • Quality control laboratories can compare flatwise tensile strength between material batches.

    Which materials can be tested using ASTM C297?

    ASTM C297 tests sandwich constructions made of foam cores, honeycomb cores, balsa wood cores, polymeric cores, metallic cores, composite face sheets, aluminum panels, steel panels, fiber-reinforced polymer composites, thermoplastic composites, and other lightweight structural sandwich materials.

    Why is ASTM C297 Important?

    ASTM C297 provides a standard procedure for testing the tensile bond strength of sandwich constructions, helping ensure adequate bond integrity for structural panels used in demanding engineering applications. Accurate flatwise tensile strength data can help manufacturers improve product quality, optimize manufacturing processes, verify adhesive performance, and minimize the risk of structural failures. The standard also applies to the quality assurance, structural certification, engineering design, regulatory compliance, and long-term performance evaluation of lightweight composite structures.

    ASTM C297 Equipment and Sample Preparation Guide

    ASTM C297 specifies representative sandwich construction specimens, properly bonded loading fixtures, and calibrated tensile testing equipment to accurately measure flatwise tensile strength. Repeatable and standards-compliant test results are achieved by proper specimen preparation and alignment.

    Read more

    Specimen detailsRepresentative specimens are sandwich constructions formed by lightweight core materials like polyurethane foam, PVC foam, honeycomb structures, balsa wood, or other cellular cores which are bonded between metallic, composite, or plastic face sheets. Typical applications include aerospace, marine, automotive, transportation, wind sector, and structural composite applications.
    Specimen dimensionsASTM C297 uses specimens with a square test area. The standard provides specific dimensional requirements for the specimen and loading arrangement, which depend on the applicable inch-pound or SI system.
    Specimen preparationTechnicians cut representative sandwich specimens to the required geometry and bond suitable loading blocks or fixtures to the opposite faces.
    InstrumentationThe test requires a universal testing machine or other suitable tensile-loading apparatus, loading fixtures or blocks, and equipment capable of accurately measuring the applied tensile load.

    Testing Procedures and Requirements for ASTM C297

    ASTM C297 determines the flatwise strength of sandwich constructions that fail in tension under a controlled tensile load. The bond strength and structure integrity are determined accurately with standardized laboratory testing. ASTM C297 testing procedure includes the following steps-

    Read more

    Specimen PreparationTechnicians select representative sandwich construction specimens and prepare them according to the specified geometry and test requirements.
    Sample ConditioningTechnicians condition the sandwich specimens according to the applicable requirements before testing.
    Test Apparatus SetupOperators install the specimen between suitable loading fixtures and verify that the testing machine can apply tensile force perpendicular to the sandwich faces.
    Fixture BondingThe operator bonds the loading blocks or fixtures securely to the opposite faces of the specimen so that the tensile force transfers through the specimen.
    Tensile LoadingTechnicians apply the tensile load perpendicular to the specimen faces at the specified rate until the specimen fails.
    Failure ObservationOperators observe and record the location and character of failure within the core, facing, or core-to-facing interface.
    Data Collection and ReportingEngineers record specimen identification, dimensions, maximum load, loading conditions, failure location, and other observations needed to calculate flatwise tensile strength. Analysts calculate flatwise tensile strength from the maximum load and applicable specimen area and evaluate the observed failure mode.
    Documentation and ReportingLaboratory reports contain specimen identification, construction details, dimensions, test conditions, maximum load, calculated flatwise tensile strength, failure mode, and ASTM C297 test details.

    ASTM C297 Testing Process and Data Collection

    The testing process starts with preparing typical sandwich construction specimens and bonding loading fixtures to each face sheet. The specimen is then subjected to tensile loading in the universal testing machine, perpendicular to the sandwich panel, until failure occurs. The applied load, displacement, and failure location and characteristics are recorded continuously throughout the test. Laboratory documentation consists of dimensions of specimens, material identification, conditioning, maximum load, calculation of flatwise tensile strength, failure mode observed, characteristics of fracture, and quality control records to prove compliance with ASTM C297.

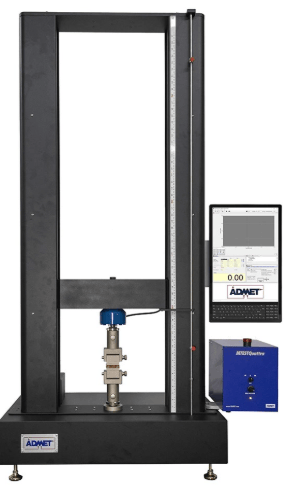

    The image shows a universal testing machine testing a sandwich composite panel with bonded face sheets and lightweight core material according to ASTM C297 in flatwise tensile mode.
    ASTM C297 Universal Testing Machine (UTM)

    Common Challenges and Troubleshooting.

    Mismatches between the loading fixtures and specimens, specimen misalignment in the fixture, variations in adhesive curing, fixture failure before the adhesive cures, inconsistencies in specimen size, and equipment calibration errors can affect test accuracy. These factors can affect measured tensile strength and failure modes. Proper specimen preparation, fixture alignment, proper adhesive selection, calibrated testing equipment, a controlled testing environment, and competent laboratory personnel produce accurate, repeatable, and reliable ASTM C297 test results.

    Analysis Results and Interpretation

    • Flatwise tensile strength measures the bond strength between the sandwich core and face sheets as the load at which the bond fails divided by the bond’s cross-sectional area.
    • The test report includes the maximum applied load, tensile strength calculation, specimen dimensions, conditioning conditions, adhesive characteristics, and failure mode, helping engineers understand structural performance and manufacturing quality.
    • Failure mode analysis identifies whether failure occurs in the core material, adhesive bond line, face sheet, or bonded interface, and can inform material selection, adhesion evaluation, and process development.
    • When tensile strength values are consistent and the failure is cohesive, the bond between the core material and the surrounding materials is likely good and has strong structural integrity. Adhesive and interface failures may suggest bonding failure or manufacturing inconsistency.

    Link to ASTM C297

    Read more

    FAQ

    Where can I get the astm c297 tested?
    You can share your astm c297 testing requirements with MaTestLab. MaTestLab has a vast network of material testing laboratories, spread across the USA and Canada. We support your all material testing needs ranging from specific astm c297 test to various testing techniques.
    Please contact us for a detailed quote for your astm c297 testing needs. Cost incurred to carry out different astm c297 testing methodology depends on the type of raw material; number of samples, coupons, or specimens; test conditions, turn around time etc. Costs of some ASTM testing methods start from $100 and the final value depends upon the factors listed above. Please contact us for the best and latest prices.
    The required number of samples or specimens should comply with the procedure given in the astm c297 standard. However, the MaTestLab operations team can assist you for your special requirements once you share your testing details with us.
    MaTestLab has a vast testing laboratory network, hence we bring you the best testing facilities in a cost-effective way. We offer considerable discounts (15-20%) to our returning customers based on test volume and frequency.
    The turnaround time for astm c297 test methodology depends upon the test procedure mentioned in the standard test document. However, we at MaTestLab understand your research requirements and hence try to get your test completed within the least possible time.
