ASTM D1557 Laboratory Compaction Characteristics of Soil
ASTM D1557 provides standard test methods for laboratory compaction characteristics of soil with modified effort (56,000 ft-lbf/ft³ or 2,700 kN-m/m³). This standard assesses soil moisture content vs. dry density under heavy compaction and is used by the geotechnical and construction industries. The test involves compaction into a compaction mold using a modified rammer and a controlled method that represents the compaction energy of the field. Test reports include the maximum dry density, optimum moisture content, compaction curves, and test conditions. Engineers use ASTM D1557 in stable foundations, embankments, highways, and pavement systems.
Read More
GET STARTED
ASTM D1557 Introduction
ASTM D1557 (Standard Test Methods for Laboratory Compaction Characteristics of Soil Using Modified Effort) measures the compaction characteristics of soil at high compaction energy. The method determines the maximum dry density of soil at various moisture contents. Laboratory compaction tests assist engineers in determining the percent compaction and molding water content needed to obtain desired engineering properties. The tests also help with compaction in the field and with controlling moisture content during construction.
Get Certified ASTM D1557 Testing for Reliable Soil Compaction Analysis
Certification ensures that soils have sufficient compaction and density before the establishment of testing material. Certified testing enhances structural stability, minimizes settlement risk, and contributes to the long-term performance of pavement and foundations.
Service Name
Remarks
ASTM D1557 Testing
Contact US
Testing Procedures and Requirements
First, the technical person takes a representative soil sample and adjusts its moisture content. Then, the technician fills the soil and layers it into a compaction mold. The modified rammer uses controlled compaction energy to compact each layer. The technician measures wetness and mass after compaction and calculates moisture content. Lastly, the technician measures the dry density and constructs the compaction curve.
Specimen Preparation
Technicians take representative soil samples from the field and carefully process them in the lab. They filter out big particles, organic material, and other debris. Then they air-dried samples to remove the excess moisture.
Compact Testing and Analysis
Technicians place the soil into a compaction mold in layers and properly compact each layer. They also carry out moisture content tests. Finally, they graph the test data on a compaction curve to display the moisture content/dry density relationship.

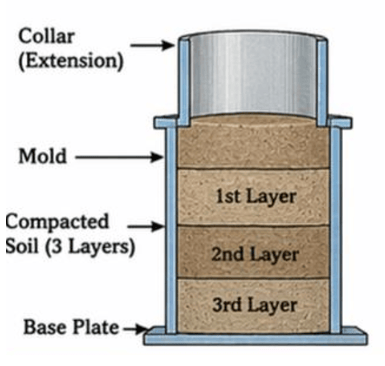

ASTM D1557 Proctor Compaction Apparatus
Scope of ASTM D1557
Determines compaction properties of soils in the laboratory.
Determines maximum dry density and optimum moisture content.
Helps with geotechnical design and quality control.
Used for foundation, embankment, and pavement soils.
Conducts routine maintenance and repairs on road equipment and machinery.
ASTM D1557 Equipment and Sample Preparation
Sample and Specimen Details
Technicians analyze soil samples from construction projects, embankments, highways, foundations, airfields, and earthwork projects. A common method for evaluating cohesive soils, granular soils, silty soils, clayey soils, and soil mixtures containing gravel or sand to determine the moisture-density relationship in soils subjected to a modified compaction effort.
Specimen Dimensions
Operators air-dry or oven-dry the soil sample as required and break down soil lumps without crushing individual particles. They separate oversized particles if required, then add a controlled volume of water to produce varying moisture contents and ensure uniform moisture distribution, mixing the sample thoroughly prior to compaction.
Specimen Preparation
The laboratory prepares specimens in standardized molds, usually a 4 in. (101.6 mm) or 6 in. (152.4 mm) diameter mold, depending on the maximum particle size of the soil sample. The operators compact the soil in several layers with a defined number of hammer blows to achieve the desired compaction energy.
Use of ASTM D1557
Examines soil compaction behavior.
Helps in foundation and pavement design.
Assists in deciding field compaction needs.
Play a role in construction quality control.
Initiates enhanced assessment of structural stability.
Why is soil compaction important?
Soil compaction results in denser soil with fewer air voids. Good compaction enhances load-bearing, stability, and resistance to settlement in construction projects.
What is the maximum dry density?
Maximum dry density is the greatest density of soil for a given compaction effort. Engineers use this test to set compaction targets in the field for a construction project.
Common Challenges and Troubleshooting in ASTM D1557
Technical problems include inaccurate moisture content, compaction problems, sample preparation problems, or inaccurate density readings. These issues impact compaction outcomes. However, proper soil conditioning, calibrated equipment, and controlled testing procedures enhance testing accuracy and repeatability.
ASTM D1557 Testing Technique, Process, and Data Collection
The technician processes the soil sample and moistens it. The technician then fills the mold with soil in layers. Each layer is compacted to a specified compaction strength using the modified rammer. The technician determines the moisture content and measures the compacted mass. Lastly, the operator determines the dry density and draws the compaction curve.
Analysis Results and Interpretation
ASTM D1557 specifies most dry densities in kilograms per cubic meter (kg/m³) or grams per cubic centimeter (g/cm³). The procedure examines the most complete moisture percentage. High dry density values mean suitable compaction and good soil balance. Low-density values suggest poor compaction or poor moisture conditions. Engineers apply these results and determine compaction needs in the field to assess field quality.
Factors to Consider in ASTM D1557 Testing
Speed: Streamlined testing facilitates quicker construction and geotechnical assessment.
Expertise: Experienced technicians ensure accurate compaction and moisture measurements.
Cost: Streamlined testing processes lower construction and laboratory expenses.
You can share your astm d1557 testing requirements with MaTestLab. MaTestLab has a vast network of material testing laboratories, spread across the USA and Canada. We support your all material testing needs ranging from specific astm d1557 test to various testing techniques.
How much do I need to pay for the astm d1557 test?
Please contact us for a detailed quote for your astm d1557 testing needs. Cost incurred to carry out different astm d1557 testing methodology depends on the type of raw material; number of samples, coupons, or specimens; test conditions, turn around time etc. Costs of some ASTM testing methods start from $100 and the final value depends upon the factors listed above. Please contact us for the best and latest prices.
How many samples are required for astm d1557?
The required number of samples or specimens should comply with the procedure given in the astm d1557 standard. However, the MaTestLab operations team can assist you for your special requirements once you share your testing details with us.
How much discount can I get on the astm d1557 test?
MaTestLab has a vast testing laboratory network, hence we bring you the best testing facilities in a cost-effective way. We offer considerable discounts (15-20%) to our returning customers based on test volume and frequency.
How many days will it take to complete the astm d1557 test?
The turnaround time for astm d1557 test methodology depends upon the test procedure mentioned in the standard test document. However, we at MaTestLab understand your research requirements and hence try to get your test completed within the least possible time.
Where can I get the astm d1557 tested?
You can share your astm d1557 testing requirements with MaTestLab. MaTestLab has a vast network of material testing laboratories, spread across the USA and Canada. We support your all material testing needs ranging from specific astm d1557 test to various testing techniques.
